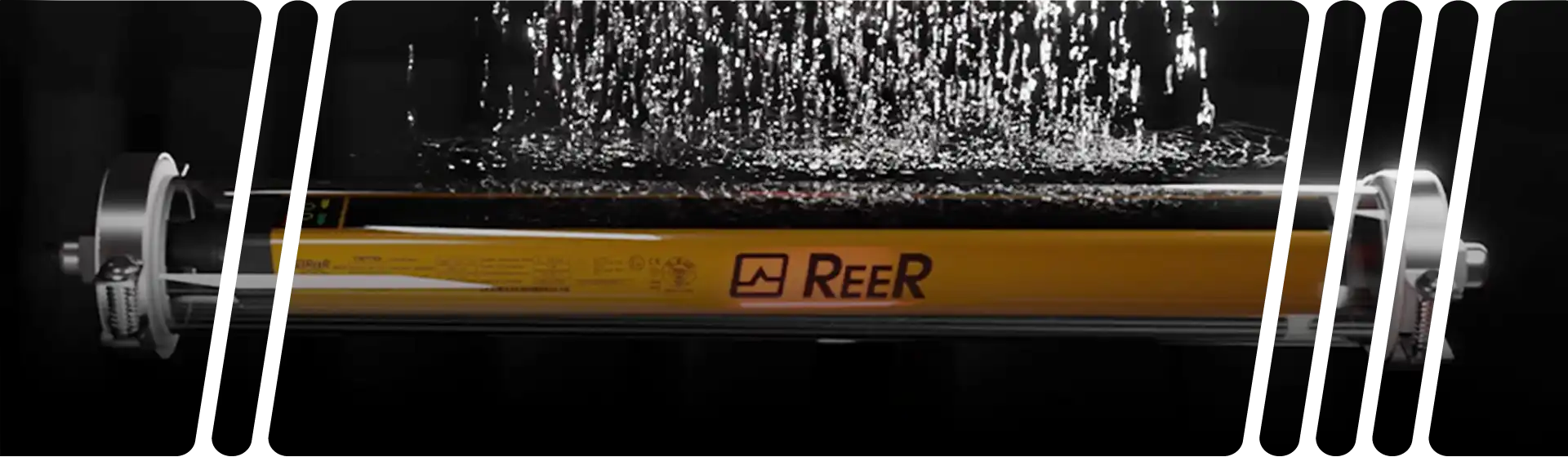

Watertight enclosures for safety light curtains
Watertight enclosures allow light curtains to be used in a harsh working environments with exposure to water and steam
A unique protection for harsh environments
Products protected by watertight (WT) enclosures are capable of resisting to water jets under pressure up to an IP69K protection grade.
The WT housings furthermore provides a further mechanical protection of the light curtain.
Heated versions (H) with a thermostatically-controlled heating system (can work down to -25°C).
Food-graded versions certified to Ecolab standards (F).
The use of inert and non-toxic components allow WTF and WTHF enclosures to be used in the Food & Beverage industry, where frequent wash-down procedures are requested.
Models
WTF and WTHF models (IP69K certified, Ecolab food-graded) for harsh working environments applications.
Standard (WT and WTF)
Watertight enclosures WT allow light curtains and light grids to be used in a harsh working environments with exposure to water and steam. The use of inert and non-toxic components allow WTF and WTHF enclosures to be used in the Food & Beverage industry.
Heated (WTH and WTHF)
WTHF versions (heated) have a thermostatically controlled heating system and can work down to -25 °C.
Heated UV Resistant (WTH UV)
Watertight enclosures allow Safety Light Curtains to be used in harsh working environments and outdoor Salt and UV resistant. Integrated anti-condensation system
EOS Watertight Enclosures
Main Features
- IP69K protection grade
- Anti-condensation system trough integrated GORE valve
- Max. water pressure jets: 80 … 100 bar at 80° C (± 5° C)
- Electrical connections: 10-metre cable pre-wired with cable gland
- PMMA (polymethyl methacrylate) transparent enclosure
- POM-C (acetal resin DELRIN®) sealing caps
Models
- Standard (WTF)
Resolution: 14 mm (Finger), 30 mm (Hand)
Multi-Beam: access control - Heated (WTHF)
Resolution: 14 mm (Finger), 30 mm (Hand)
Multi-Beam: access control
Food-Graded, IP69K Certified
The small EOS WTF and WTHF cylindrical enclosure (only 56 mm diameter) is IP69K protection-rate tested and can withstand up to 80 bar of water jets pressure at the temperature of +80 °C.
View the full list of our part numbers
Do you need advice or further information?
Admiral/Vision Watertight Enclosures
Main Features
- IP67 protection grade
- Valve to drain humidity and avoid condensation
- Tightness to 40 bar water jet pressure
- Electrical connections by 10 m pre-wired cable
- Polycarbonate transparent housing
- PVC sealing caps
Models
- Standard (WT)
Multi-Beams: access control - Heated (WTH)
Multi-Beams: access control
Dual beams version - Heated UV Resistant (WTH UV)
Multi-Beams: access control
Dual beams version
IP67 Certified
Heated watertight enclosure IP67 Salt + UV Resistant for Admiral Long Range with Dual-Beam Technology safety light curtain
View the full list of our part numbers
Do you need advice or further information?
