EOS4

Type 4 Safety light curtains and grids.

EOS4: Unique features and a comprehensive range

EOS4 is a compact Safety light curtain range with competitive performance and innovative features. Includes models with integrated Safety functions such as self-monitoring static outputs, control of external contactors (EDM), and selectable automatic or manual restart. 2 Safety PNP static outputs. Easy connection and installation thanks to the M12 connectors and the use of unshielded cables up to 100 meters.

EOS4 safety light curtains

One simple product range to cover most of today’s industrial applications

  • Standard models EOS4 A  – Type 4 Safety Light Grids with Automatic RestartEOS4 AH – Type 4 Safety Light Grids with Automatic Restart (Longer Range)

  • Integrated functions modelsEOS4 X – Type 4 Safety Light Grids with selectable Automatic/Manual Restart and EDMEOS4 XH – Type 4 Safety Light Grids with selectable Automatic/Manual Restart and EDM (Longer range)

  • Cascade connection of two or three light curtainsNo optical interference between the light curtains. Possibility of combining different resolutions and protected heights

Special Version

  • WTF and WTHF models (IP69K certified, Ecolab food-graded)Watertight enclosures allow light curtains and light grids to be used in a harsh working environments with exposure to water and steam.

  • EOS4 ATEX – Explosion-proof safety light curtainsIdeal for access protection in environments with potentially explosive atmosphere.

  • T versions (Textile)Special versions resistant to high vibrations for applications in the textile industry. These versions are able to maintain the alignment of the beams also the presence of strong mechanical stresses and vibrations.

Resolutions and ranges

The available resolutions cover every protection requirement:

  • 14 mm – finger protection
  • 20 – 30 – 40 mm – hand protection
  • 50 – 90 mm – body protection
  • 2 – 3 – 4  beams – access control

Models (A – X) maximum range: 4 m (low range) 12 m (high range)High range models (AH – XH) maximum range: 10 m (low range) 20 m (high range)Models with 14 mm resolution maximum range 3 m (low range) 6 m (high range)

No blind area on one side

Minimal blind area on connector side. The protected area extends until the light curtain end maintaining the resolution.L-mounted light curtains maintain 40 mm resolution (hand detection) in corner (models with resolution 30 and 40 mm).

A complete range for all industrial applications

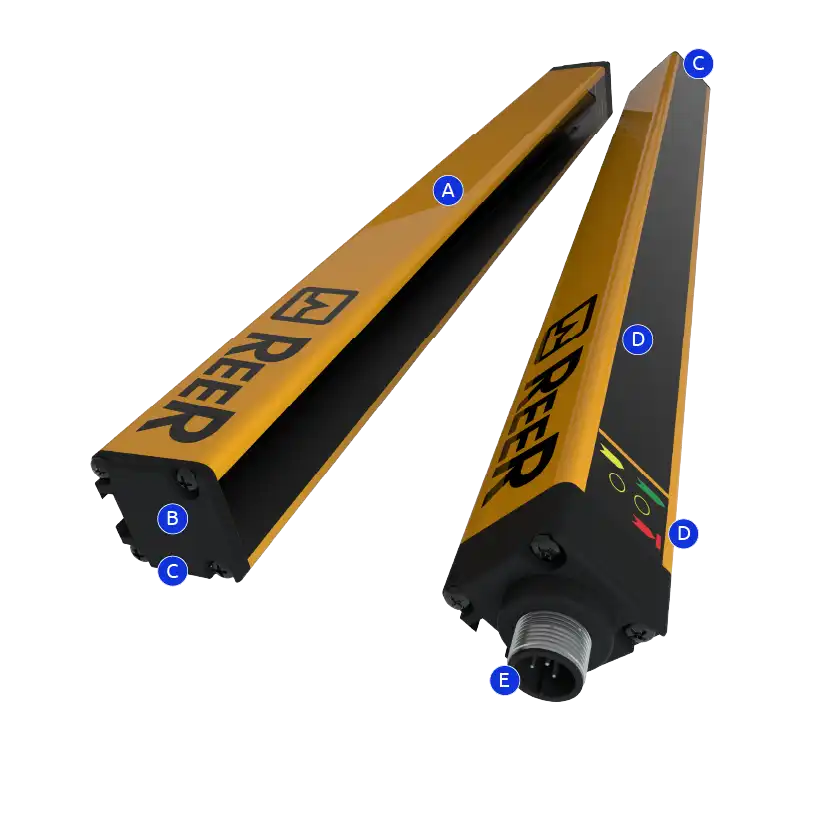

EOS4 description

A. Aluminum casing powder-coated

B. Caps glass reinforced polypropylene

C. Zero-Dead-Zone on one side of the curtain
The position of first beam ensures that the sensitive area extends to end of the light curtain. The protected area extends until the light curtain end, maintaining the resolution

D. Status indicating display. Including alignment aids

E. M12 connectors
Cables easy to source and replace. No shielded cables needed

Hardware configuration
No programming necessary Easy to install and replace

Minimal cross section: 28 x 30 mm

Start-up time: ≤ 2 sec

Master/Slave versions for cascade connection of two or three curtains

Cascading function

Master/Slave versions allow series connection of up to three light curtains

Major benefits

  • Combined detection (hand + presence of a person or protection of more sides of the machine)
  • Single pair of safety outputs is used
  • No interference between light curtains installed adjacent to one another

Connections

All electrical connections made using M12 5-pole connectors except for Master receivers which require the use of M12 8-pole connectors.

Pre-wired cables with twin connectors are available for the connection between Master and Slave.

Built-in control functions

  • Selectable manual/automatic Start/Restart.
  • Integrated feedback input, with selectable enabling, for external relays monitoring (EDM).

A complete range for every application

The SafeReady family consists of three models, designed to adapt to different levels of application complexity:

EOS4 Standard models

Standard models

  • Automatic restart
EOS4 - Integrated function models

Integrated functions models

  • Automatic or manual restart (selectable)
  • EDM

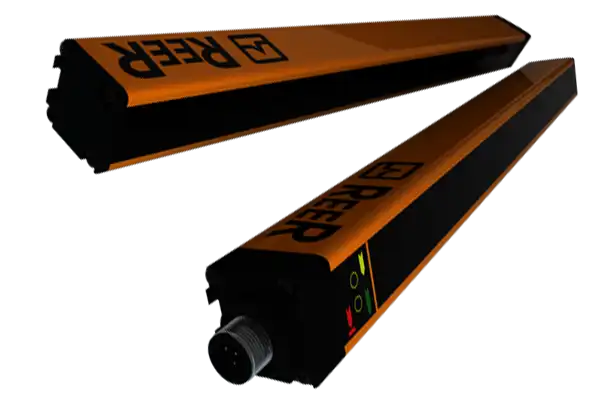

EOS4 - High Range models

High range models

  • Automatic or manual restart (selectable)
  • EDM
  • Range up to 20 m

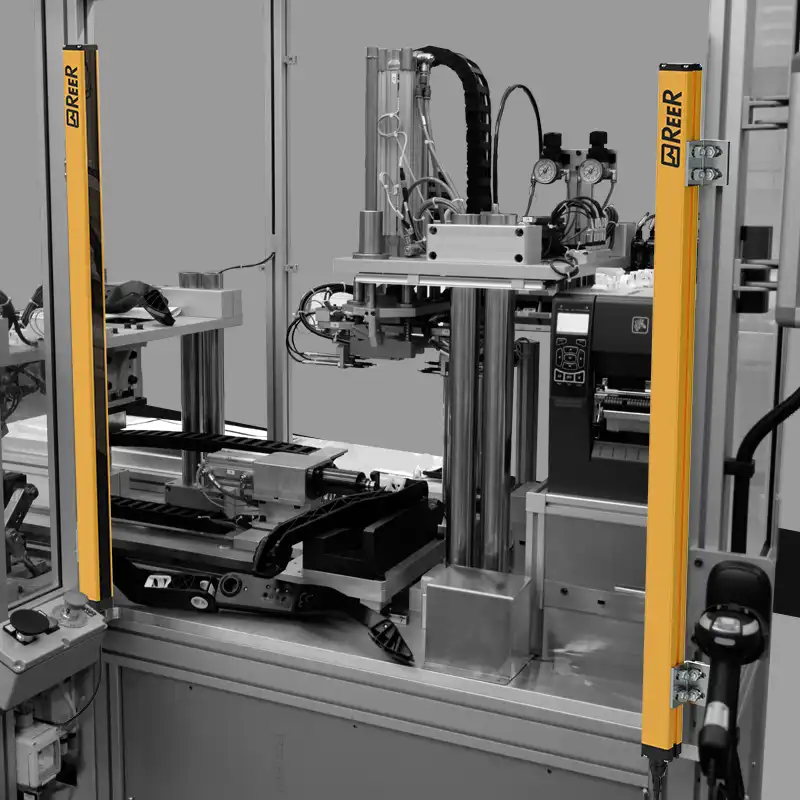

EOS4 Application - Assembly-line

Typical applications

EOS4 is ideal for:

  • presses and bending machines
  • robotic and collaborative cells
  • assembly benches
  • cutting machines
  • automatic systems and flexible lines
  • automated car parks and systems with highly variable layouts.
