Main fearures

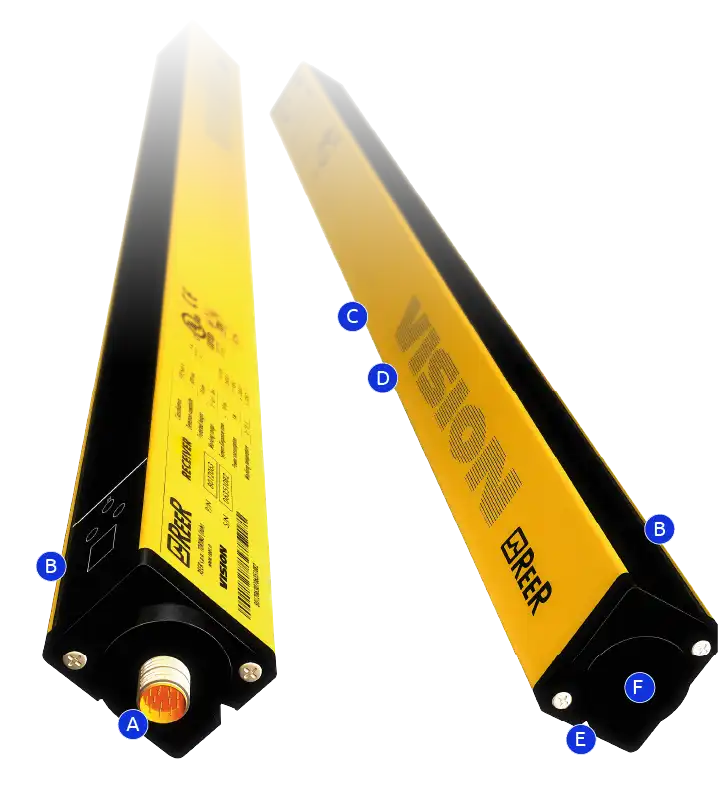

The Vision Type 2 range of safety light curtains is the ideal solution for the protection of the majority of high-risk industrial applications in Category 2. Its features includes:

• Extremely easy connection and installation, thanks to the M12 connectors and the use of standard cables
• Integration of the main safety functions, including self monitoring of the safety circuits and, for the X models, external device monitoring (EDM) and the Start / Restart interlock function

Resolutions

The available resolutions cover every protection requirement:

• 20 – 30 – 40 mm – hand protection
• 50 – 90 mm – body protection
• 2 – 3 – 4  beams – access control

Protected heights of up to 1,8 m

Integration of the main safety functions

• Manual or automatic start/restart interlock, selectable
• ntegrated feedback input for external device monitoring (EDM)

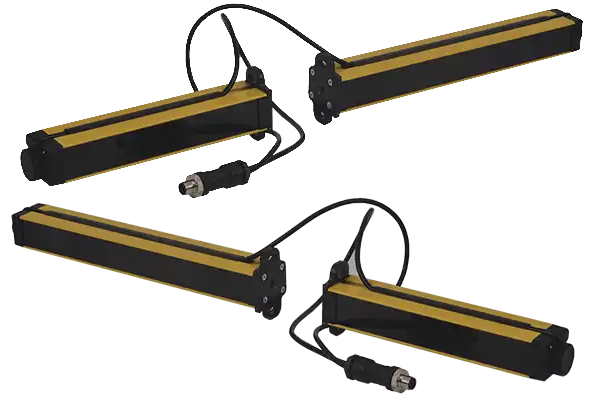

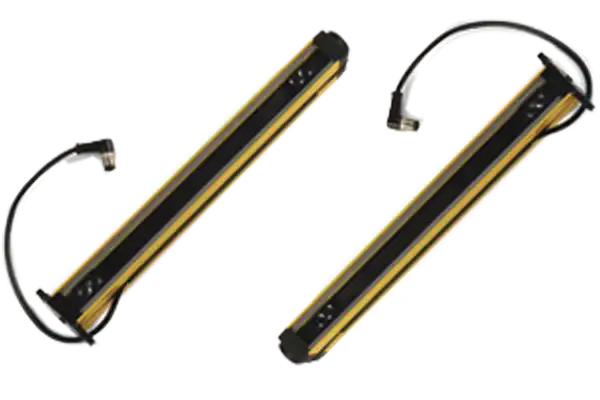

• Muting function. With additional Muting arms

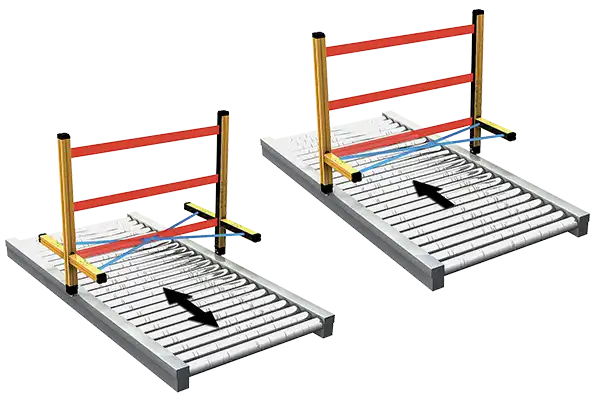

  Additional arms with built-in Muting crossed beams photoelectric sensors, combined with the Vision light curtains series form a one way access control system with L logic (exit only) or a bi-directional access control system with T logic (entry and exit).
  VISION MXL SERIESVision MXL is a range of safety light curtains with integrated Muting function. Set-up of each function can be done through main connector. No need external module. Models MXL L and MXL T are available with integrated Muting sensors.
• Cascading function. Master/slave models with built-in control functions

Range

VISION V L operating range 0 – 6 m

VISION V H operating range 1 – 16 m

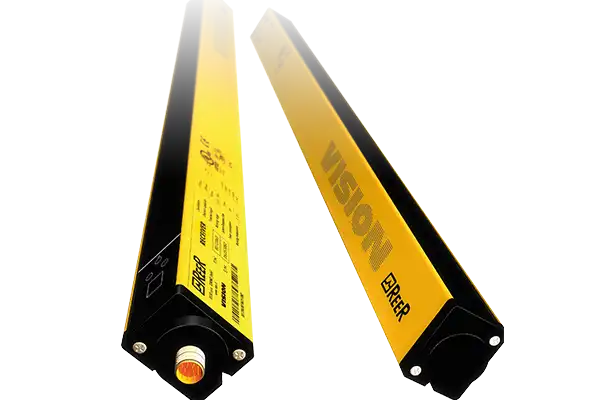

VISION VX
Selectable operating range: low range 0- 6 m,  high range 1 – 18 m

VISION VX LR (Long Range)
Selectable operating range: low range 10 – 22 m, high range 18 – 60 m

VISION VX M – S
Selectable operating range: low range 0- 6 m,  high range 3 – 18 m

VISION VXL operating range: 0,3 – 8 m

VISION MXL
MXL and MXL U operating range: 0,3 – 8 m
MXL L amd MXL T operating range: 1 – 2,5 m
