Micron MI C

Presence detection Light Curtains and Automation Sensors

Micron MI C: Detection and control

Light curtains for industrial and civil applications where it is necessary to detect objects.

Solution providing simple on/ off information related to the status of the controlled area.

With two antivalent solid state outputs (0 or 24V).
Ideal for piece counting and detection of object presence/absence in the controlled field

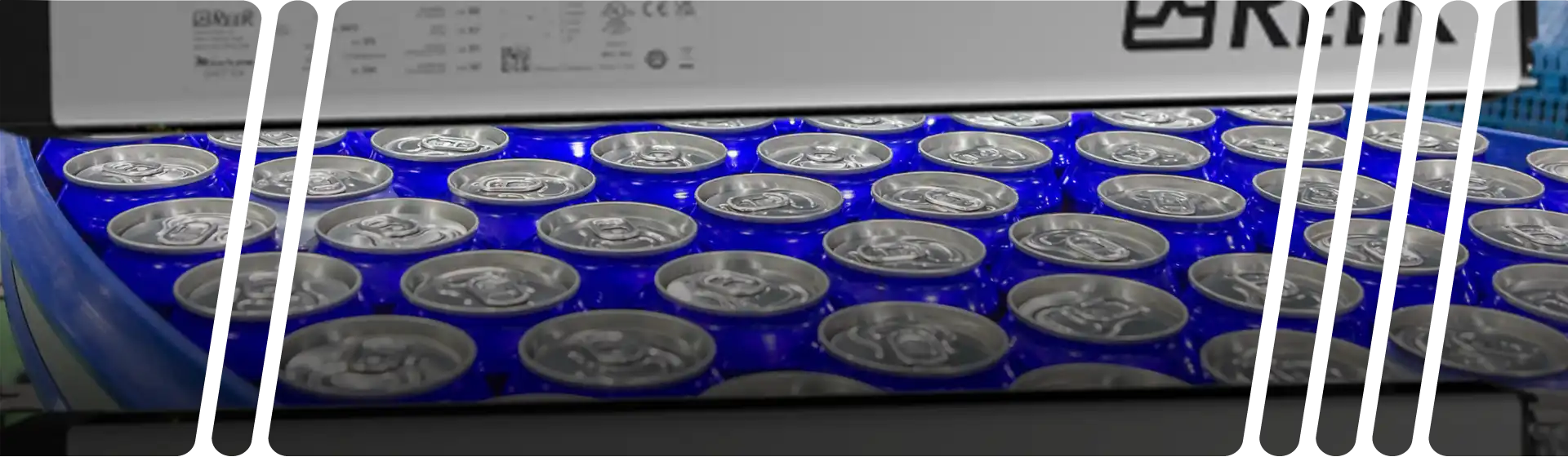

Micron C detection light curtains

Detect and recognize objects.

Depending on the number and position of the beams engaged by an object, Micron can provide real time information to a PLC or PC in order to:

  • Detect the presence or absence of objects
  • Perform a count

Beam spacing and ranges

  • Beams spacing 5 mm – Max range 2,5 m
  • Beams spacing 10 mm – Max range 10 m
  • Beams spacing 25 mm – Max range 18 m
  • Beams spacing 30 mm – Max range 10 m
  • Beams spacing 50 mm – Max range 18 m
  • Beams spacing 75 mm – Max range 18 m

With controlled heights of up to 3 m.

Operative ranges

  • Beams spacing 5 mm
    Normal range – Low range 0 – 1 m, high range 0,6 – 2,5 m
  • Beams spacing 10 mm and 30 mm
    Normal range – Low range 0 – 2 m, high range 1 – 10 m
  • Beams spacing 25 mm, 50 mm and 75 mm
    Normal range – Low range 0 – 8 m, high range 1 – 18 m

Hardware selection between low and high range via emitter connector cabling (pin 2).

Outputs

  • Micron MI AV (5, 25, 50, 75 mm)
    2 solid state programmable digital outputs 0 or 24V (PNP 100 mA)
  • Micron MI AV (10, 30 mm) Outputs
    2 solid state programmable digital outputs 0 or 24V (Push-Pull)

Ideal for object detection

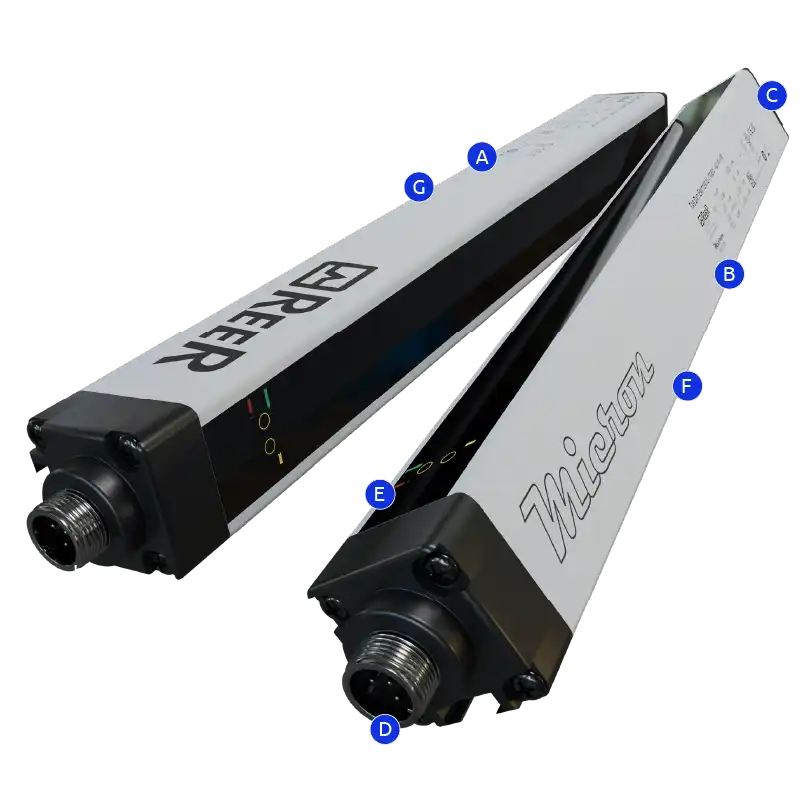

Micron C description

A. Aluminum casing powder-coated. Compact size only 30 x 28 mm

B. From -10 to +55° C operating temperature. Ideal also in cold storage facilities

C. Caps – Glass reinforced polypropylene

D. M12 connectors. Cables easy to source and replace

E. Status indicating display Including alignment aids

F. IP65 and IP67

G. Two solid state 0 or 24V antivalent

WTF and WTHF (IP69K watertight enclosure)

Micron WTHF P69K watertight enclosure

Watertight enclosures allowlight curtains to be used in a harsh working environmentswith exposure to water andsteam.

All Micron models can be manufactured with WTF watertight enclosure (IP69K and Ecolab certified). In these versions, excluding C and IO-Link models, factory programmed is mandatory. The use of inert and non-toxic components allow WTF and WTHF enclosures to be used in the Food & Beverage industry, where frequent washdown procedures are requested.

Micron C Application

Typical applications

  • Quality control: verification of presence / absence / position of holes
  • Loop control
  • Quality control: verification of correct positioning of objects

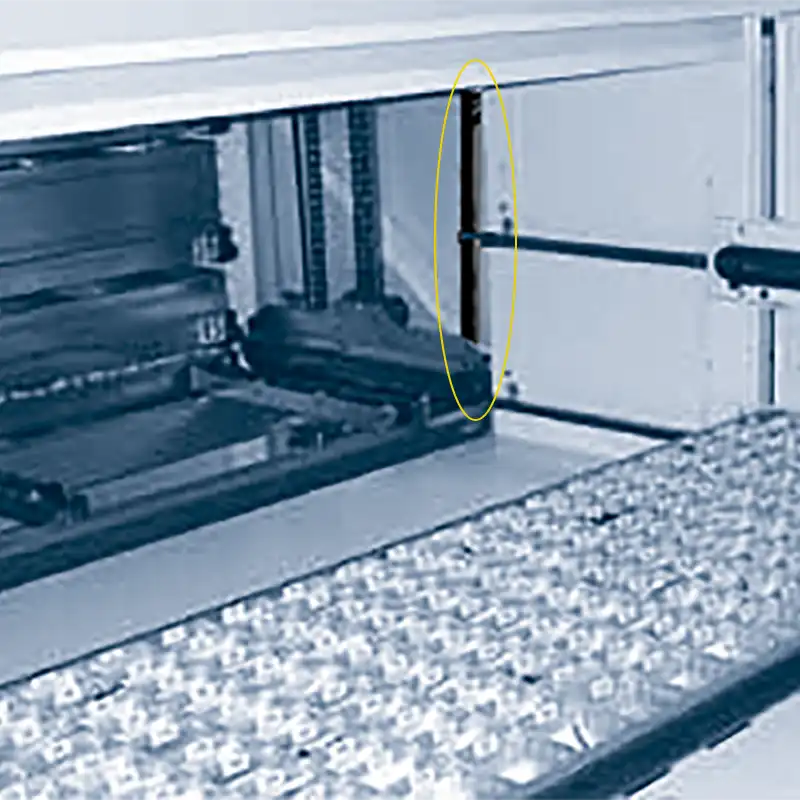

Vertical warehouse storage systems

Micron is customised to satisfy the needs of automated warehousing applications,including: accuracy of the reading in every position of the storing drawer (left, right or centrepositioned), ability of measuring small dimension objects (less than 2 mm at 600 mm/sec)particularly during the high-speed transit of the storing drawers in front of the barrier, andimmunity to optical reflections.
