SAFEREADY
The new generation of ReeR safety light curtains.
SafeReady: Ready to protect. Ready to Perform.
ReeR Safety expands its range with SafeReady, the new family of safety light curtains designed to meet the most advanced needs of modern industrial automation.
Not only does it offer the highest level of operator protection, but it also provides ease of integration, configuration and safety management in increasingly compact, flexible and reconfigurable systems.
SafeReady is Type 4 – PL e certified, the highest level required by international standards, and is designed to ensure reliable performance even in harsh industrial environments.
SAFERADY safety light curtains
High performance, robust construction
The compact but extremely robust powder-coated aluminium body ensures high resistance to shock and vibration (CEI EN 60068).
IP65 and IP67 protection ratings and a wide operating temperature range from -30 to +55 °C make SafeReady suitable even for refrigerated environments or harsh operating conditions.
Resolutions and ranges
The available resolutions cover every protection requirement:
- 14 mm – finger protection
- 20 – 30 – 40 mm – hand protection
- 50 – 90 mm – body protection
- 2 – 3 – 4 beams – access control
With protected heights of up to 2 m and ranges of up to 18 m (Low Range 0–8 m, High Range 6–18 m), SafeReady is suitable for a wide variety of industrial applications.
Lorem ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Lorem ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

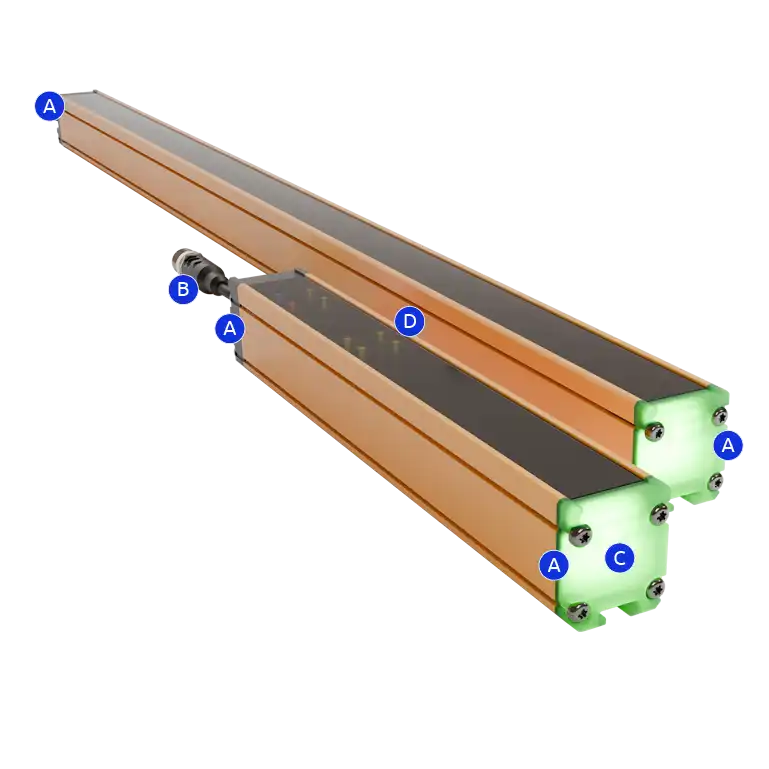

No compromise between safety and operability
A. No blind zone on either side of the barriers
One of the distinctive features of SafeReady is the total absence of blind zone on both sides of the barrier. Protection is continuous across the entire detection field, eliminating unmonitored areas near the profile.
This allows you to:
- avoid increasing safety distances;
- reduce or eliminate additional mechanical guards;
- design more compact machine layouts.
The result is truly effective safety without compromising on design.
B. Pigtail cable with M12 connector that can be positioned in different ways
The cables, easily available, replaceable and adjustable, make SafeReady a solution designed to integrate seamlessly and last over time.
C. Integrated multi-colour status lamp
D. Alignment aid with 4 LEDs on the front display
Alignment between the transmitter and receiver is facilitated by four high-brightness front LEDs, drastically reducing installation and maintenance times.
Fixed and floating blanking: adaptive safety
SafeReady integrates advanced fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.
Fixed and floating blanking: adaptive safety
SafeReady integrates advanced fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.
Fixed and floating blanking: adaptive safety
SafeReady integrates advanced fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.
Fixed and floating blanking: adaptive safety
SafeReady integrates advanced fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.

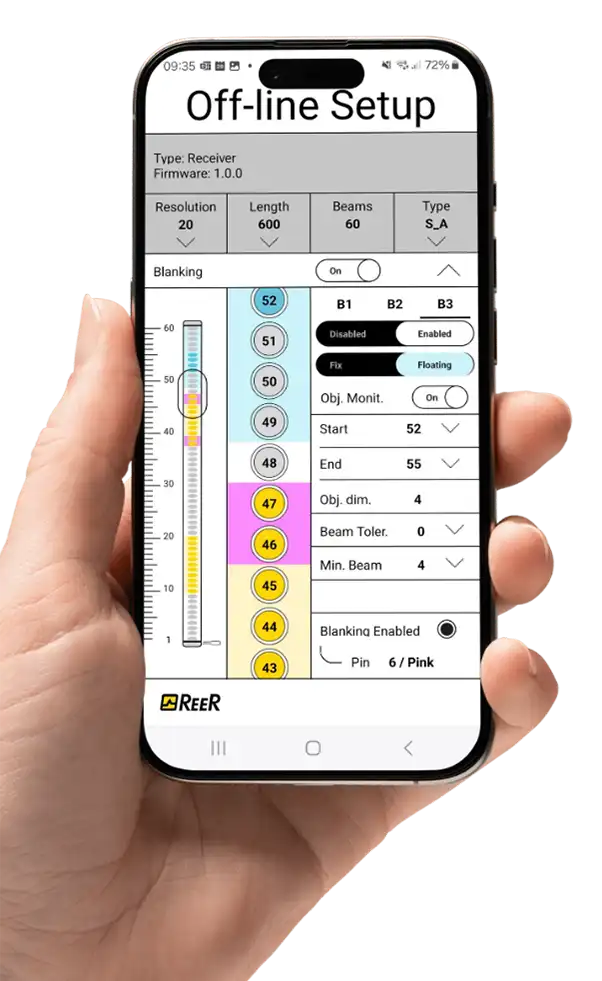

Smart configuration with Bluetooth
With SafeReady, ReeR brings industrial safety into the age of connectivity.
Monitoring
Displaying the characteristics of the connected light curtain:
- Identification data
- Name, identifier and serial number
- Physical characteristics
- Resolution, height, number of beams and connectors
- Beam status with indication of their position along the light curtain
- Free or occupied
- LED status
- Operating mode (Blanking) with indication of the beams or heights affected by the function
Monitoring
Displaying the characteristics of the connected light curtain:
- Identification data
- Name, identifier and serial number
- Physical characteristics
- Resolution, height, number of beams and connectors
- Beam status with indication of their position along the light curtain
- Free or occupied
- LED status
- Operating mode (Blanking) with indication of the beams or heights affected by the function
Immediate visibility and simplified integration
The integrated multi-colour status lamp and diagnostic LEDs provide a clear and immediate readout of operating conditions in real time. In Plus models, all information is also available via Bluetooth, directly from your smartphone or tablet.
RED – Break
GREEN – Guard
ORANGE blinking – Clear (waiting for restart)
ORANGE – Enabled Blanking
BLUE – Bluetooth connection
Fixed and floating blanking: adaptive safety
SafeReady integrates advanced fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.
Basic model
- Automatic restart
Standard model
- Automatic or manual restart (selectable)
- EDM
Plus model
- Automatic or manual restart (selectable)
- EDM
- More advanced version, with advanced safety functions configurable via Bluetooth APP
Typical applications
SafeReady is ideal for:
- presses and bending machines;
- robotic and collaborative cells;
- assembly benches
- cutting machines;
- automatic systems and flexible lines;
- automated car parks and systems with highly variable layouts.
The future of safety, ready to use
With SafeReady, ReeR Safety is not simply introducing a new photoelectric barrier, but a compact, integrated and programmable safety system that combines advanced protection with operational efficiency.A solution designed to effectively address the challenges of today’s and tomorrow’s industry.
