R-Safe RFID Safety Switches

Safety switches for position control of movable guards

R-Safe: Next generation RFID switches

The application of R-Safe RFID sensors can be extremely wide thanks to the
compact and versatile design.

The different design and technology options as well as the complete mechanical compatibility with the Magnus MG and RFID sensors “S” series, make this product extremely valuable for users.

The RFID technology enables R-Safe RFID sensors to be coded in three
different ways to allow the appropriate tampering protection in all applications.

The highest level of coding allows the sensors to be paired only with the assigned actuators.

The RFID technology used allows to reach safety levels up to PL e / SIL 3 also  when connecting the sensors in series. As a result, R-SAFE RFID sensors can be
simply integrated in existing safety scenarios, offering a cost-effective solution for modifying and upgrading machines.

R-SAFE RFID Safety Switches

The best for series connections

R-Safe RFID allows individual status reading without the need to individually wire the status output of each sensor.

The best in cost-effectiveness

Wear-free technology allows for longer product life time. Status LED and diagnostic output. Full mechanical compatibility with Magnus RFID and Magnus MG “S” series. Can be used as stand-alone or in series.

The best in safety

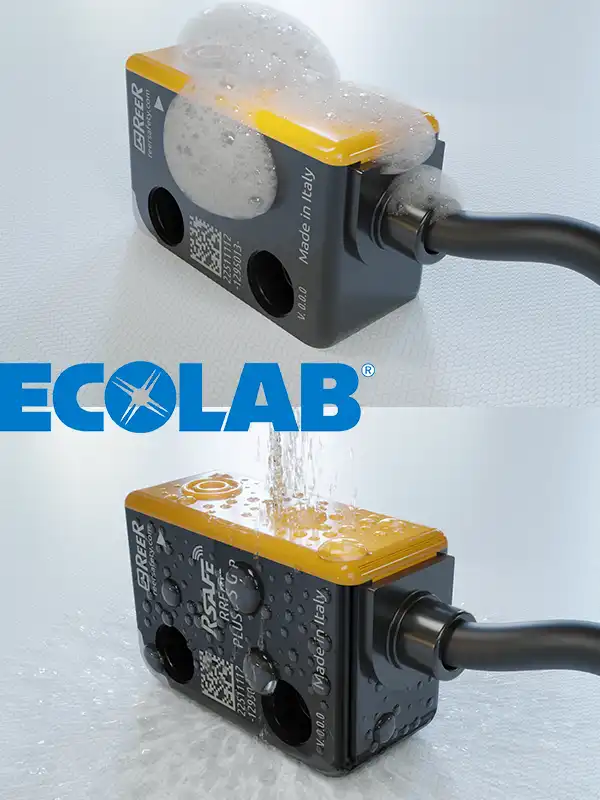

Tampering protection in accordance with EN ISO 14119, the highest in its class. Screw covers prevent easy removal. Series connection up to PL e/SIL 3. IP67 and IP69K protection grade for use in harsh environments.

The best in versatility

Triple mounting options. M12 connector, M12 connector with pigtail or cable.3 different coding levels. Extension cables for series connection

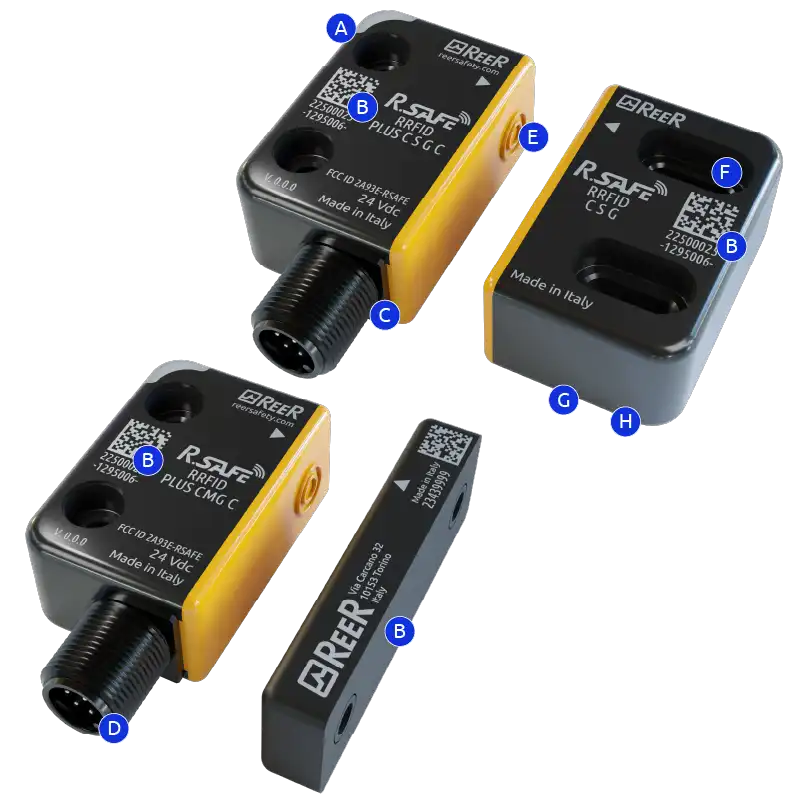

No compromise between safety and operability

A. Highly visible status LED

B. 22 mm interaxis

C. Series connection with status information

D. M12 connector, Pigtail with M12 connector, 1, 3, 5 or 10 metres cable

E. RFID technology

F. Anti-tampering protection caps

G. 3 different coding levels

H. IP67 and IP69K

Pre-Reset, Fixed and Floating blanking: adaptive safety

SafeReady integrates advanced features, pre-reset, fixed and floating blanking functions, designed for dynamic processes where the presence of moving materials or parts must not compromise operator protection.

Fixed blanking

Allows specific beams to be permanently excluded, for example for the controlled passage of a workpiece. Safety thus adapts to the process, reducing unwanted stoppages, improving productivity and limiting the risk of tampering.

Floating blanking

Floating blanking follows the movement of the material along the protected area, keeping the protection around the risk zone active.

Manual Pre-Reset

The Pre-Reset function enhances safety by requiring an additional Restart pushbutton (Pre Reset pushbutton) located within the hazardous zone.

Smart configuration with Bluetooth

With SafeReady, ReeR brings industrial safety into the age of connectivity.

Plus models can be configured and monitored via Bluetooth using a dedicated app that allows you to:view identification data and physical characteristics of the barrier;check the status of individual beams;check operating modes and status LEDs;set beam coding, response times, restart and blanking functions.

Monitoring

Displaying the characteristics of the connected light curtain:

  • Identification data
  • Name, identifier and serial number
  • Physical characteristics
  • Resolution, height, number of beams and connectors
  • Beam status with indication of their position along the light curtain
  • Free or occupied
  • LED status
  • Operating mode (Blanking) with indication of the beams or heights affected by the function

Settings

Setting the characteristics of the connected light curtains:

  • Beam coding
  • Manual or automatic restart
  • Response time setting
  • Activation of blanking
  • Fixed or floating
  • Pre-reset function enable
SafeReady APP

Immediate visibility and simplified integration</2>

SafeReady - Integrated status Lamp

The integrated multi-colour status lamp and diagnostic LEDs provide a clear and immediate readout of operating conditions in real time. In Plus models, all information is also available via Bluetooth, directly from your smartphone or tablet.

RED – BreakGREEN – GuardORANGE blinking – Clear (waiting for restart)ORANGE – Enabled BlankingBLUE – Bluetooth connection

A complete range for every application

The SafeReady family consists of three models, designed to adapt to different levels of application complexity:

Safeready Basic Model

Basic model

  • Automatic restart
Safeready Standard Model

Standard model

  • Automatic or manual restart (selectable)
  • EDM
Safeready Plus Model

Plus model

  • Automatic or manual restart (selectable)
  • EDM
  • More advanced version, with advanced safety functions configurable via Bluetooth APP
SafeReady - Application

Typical applications

SafeReady is ideal for:

  • presses and bending machines;
  • robotic and collaborative cells;
  • assembly benches
  • cutting machines;
  • automatic systems and flexible lines;
  • automated car parks and systems with highly variable layouts.

The future of safety, ready to use

With SafeReady, ReeR Safety is not simply introducing a new photoelectric barrier, but a compact, integrated and programmable safety system that combines advanced protection with operational efficiency.A solution designed to effectively address the challenges of today’s and tomorrow’s industry.
