MAGNUS MG
Magnetic Safety Switches
Magnetic Safety switches for position control of movable guards
- Coded magnetic operation – Tamper resistant
- Sensor with 4 wires: 2 NO contacts
- Rectangular, rectangular compact or cylindrical housing
- IP67 protection rate
Connection and safety level
Magnus MG magnetic sensors must be connected to Mosaic safety configurable controller.
Connected to Mosaic safety controller form a certified PL e safety system.
Can be also connected to safety interfaces for emergency stop and safety switches
Connected to AD SRE3 – AD SR3C form a certified PL d safety system
Connected to SR E4 – SR 4C form a certified PL e safety system
No compromise between safety and operability

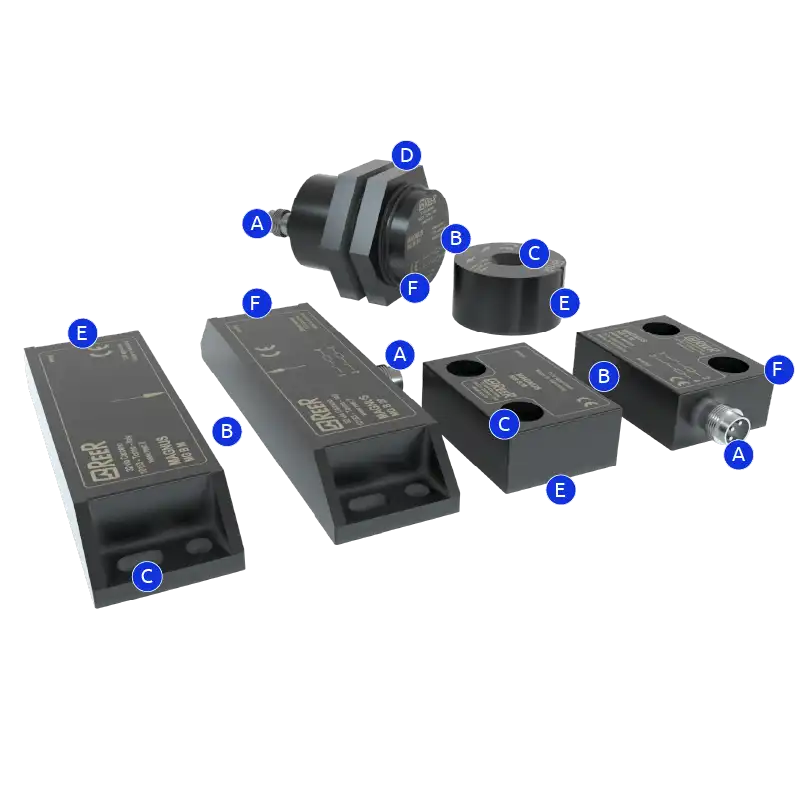

A. M8 4-pole connector
B. MG S Rectangular compact housing 22 mm interaxis distance
MG B Rectangular compact housing 72 mm interaxis distance
MG M 20 Cylindrical housing 30 mm diameter
C. Mounting holes
D. M30 Fastening nut and lock nut
E. Actuation magnets. (Possible actuation reinforced magnets)
F. Sensors
Magnus MG range
MG S 20 + MG S M
- Switching distance: 3 – 10 mm
- MG S 20 sensor
MG S M actuation magnets (to be ordered separately)

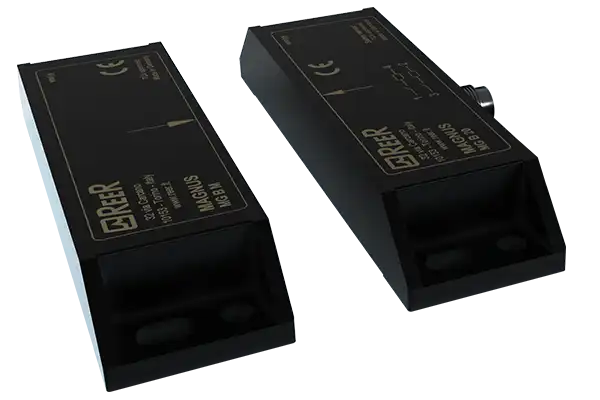

MG B 20 + MG B M
- Switching distance:
4 – 16 mm
7 – 18 mm with magnet MG B M+ - MG B 20 sensor
MG B M actuation magnets (to be ordered separately)
MG B M+ reinforced actuation magnets (to be ordered separately)
MG M 20 + MG M M
- Switching distance:
4 – 16 mm
7 – 20 mm with magnet MG M M+ - MG M 20 sensor
MG M M actuation magnets (to be ordered separately)
MG M M+ reinforced actuation magnets (to be ordered separately)
