High Vibrations safety light curtains

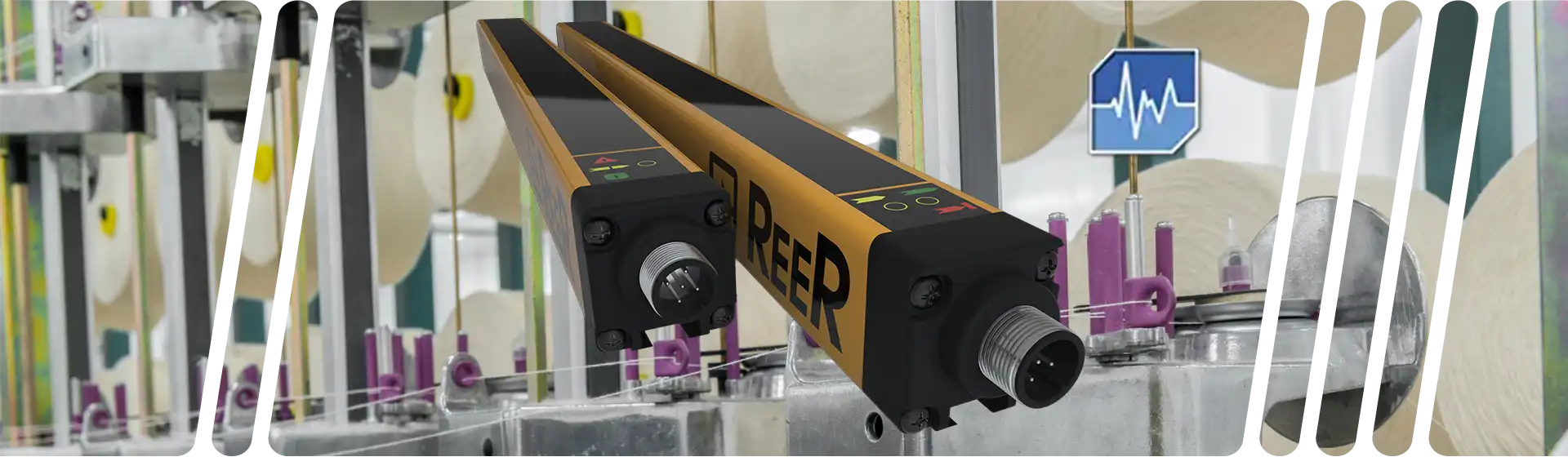

EOS4 special models resistant to vibration: High vibrations resistance and shocks resistance.
Strong capability to maintain alignment even in challenging environments.
Resistant to high vibrations
AT and AX (Textile) versions light curtains are able to maintain the alignment of the beams also in the presence of strong mechanical stresses and vibrations according to EN 60068-2-6.
- Frequency (Hz): 10 -150
- Amplitude (mm): 0,75
- Acceleration (g): 0,2
With regard to impact resistance (shock) the reference standard for barriers is EN 60068-2-27.
The test levels are established by the product standard for light curtains (61496-1):
- Shock Type: Half-sine
- Acceleration (g): 20
- Duration (ms): 11
- Directions: X, Y and Z axis
- N. of shocks: 2000 for each axis (1000 positive and 1000 negative)
The use of Vibration Dampers is highly recommended.
EOS4 AT / ATL – EOS4 XT / XTL
Main Features
AT / ATL Models
- Automatic restart
- Resolution: 30 mm (Hand)
- 160 ÷ 1810 mm protected height
- Max. range:
up to 6 m for reduced range ATL models
up to 12 m for AT models. - 28 x 30 mm2 cross section only
- No dead zone on one side 90° installation with resolution < 40 mm in the corner
- -30 ÷ 55 °C operating temperature
- Protection degree IP 65 and IP 67
XT / XTL Models
- Automatic or manual restart (selectable)
- Resolution: 14 mm (Finger), 30 mm (Hand)
- Max. range:
up to 6 m for 14 mm resolution and reduced range XTL models
up to 12 m for XT models. - Feedback input for external relays monitoring (EDM)
- 160 ÷ 1810 mm protected height
- 28 x 30 mm2 cross section only
- No dead zone on one side 90° installation with resolution < 40 mm in the corner
- -30 ÷ 55 °C operating temperature
- Protection degree IP 65 and IP 67
Typical applications
Optimal alignment also in high vibration installation. Ideal solution for:
- Presses
- Punch Press Machine
- Spinning machines
- Textile machinery
Accessories required for installation
SAV vibration dampers
The SAV vibration dampers have been designed to avoid mechanical damage to the light curtains installed in those applications which have a high level of vibrations.

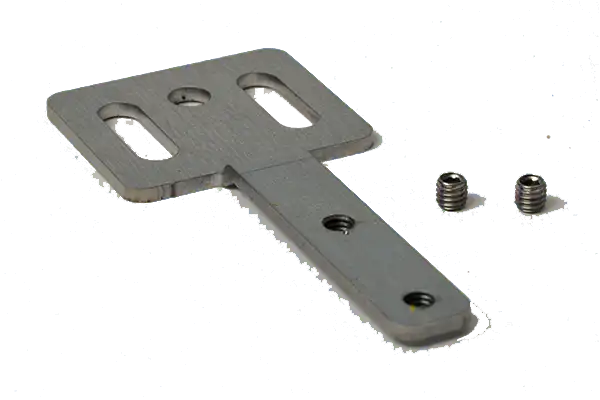

FE 4 flat brackets
The FE 4 brackets, with a thickness of only 4 mm, allow proper fastening of the EOS light curtains. Optional brackets as an alternative to those supplied with the light curtains.
SFB P brackets
Set of 4 pole-mounting brackets for EOS light curtains, Diameter 27 mm.
Optional bracketa as an alternative to those supplied with the light curtains.
