Configurable Safety Controllers and Interfaces
Safety controllers are capable of monitoring several safety sensors and commands, such as safety light curtains, laser scanners, photocells, mechanical switches, mats, emergency stops, two-hand controls, concentrating management of these in a single, flexible device.
Safety interfaces are a dedicated interfaces between safety devices equipped with self-controlled safety static outputs and control circuits of the machine or plant.
Main characteristics of safety controllers and interfaces
Digital inputs
We can categorize different types of input:
- Digital inputs
- Inputs for Restart / EDM feedback
- Inputs for proximity switches and incremental encoder
- Analogical input
Safety outputs
- OSSD (static semiconductor safety outputs) – Dual channel
- OSSD (static semiconductor safety outputs) – Single channel
- High Current Safety Outputs single channel (2A max per channel)
Test outputs
Test output signals are used to monitor overloads and short circuits on input line
Status outputs
The status output signal is a programmable output that can indicate the status of: an input. an output or a node of the logic diagram
Safety Relay
Safety relays with guided contacts. Safety relay provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact
Safety controllers and interfaces are capable of managing all the safety functions of a machine or a group of machines.

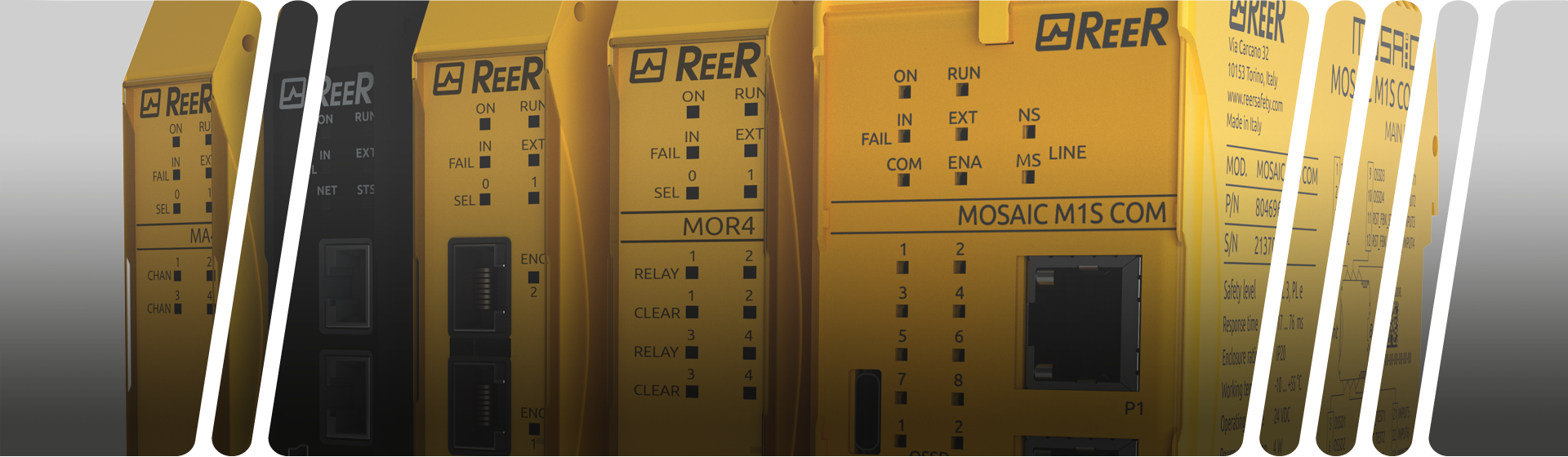

In particular, the Mosaic controller is a configurable and expandable safety system capable of managing any type of digital or analogue safety sensor
