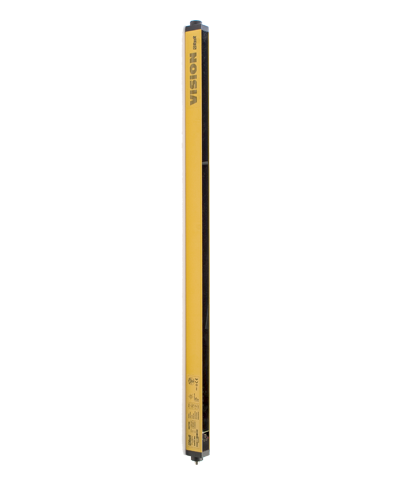

VISION MXL 1053

Type 2 - PL c

Safety level

1060

Protected height (mm)

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Integrated

Muting Function

Request info

Safety Light Curtain: Type 2, SILCL 1, PL c, Cat. 2

Cross Section: 35 x 45 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors

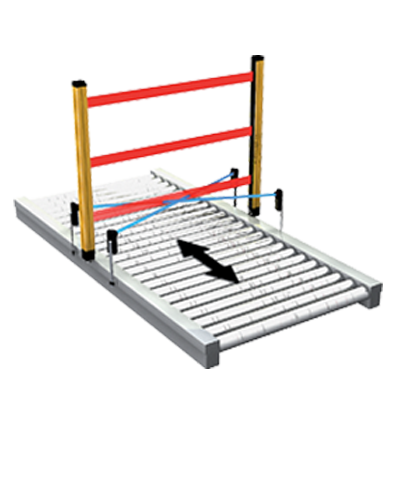

Allows the connection of external Muting sensors to create a Two-Way access control system with Entry-Exit T-Muting logic
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate - VISION Safety Light Curtains

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 2, SILCL 1, PL c, Cat. 2

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - VISION Safety Light Curtains

Safety level	Type 2 - PL c
Protected height (mm)	1060
Resolution (mm)	30
Max. range (m)	8
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2
Operating temperature (°C)	0 ... 55
Response time (ms)	33
Number of beams	56
Max. length of the connection cables (m)	100
Muting Function	Integrated
Muting logic	T (Two way) logic with 2 sensors - Crossed beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec.; 90 min. or infinite selectable
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M16 12-pole connector (receiver)
MTTFD (ISO13849) years	76,64
PFHD (IEC 61508)	9,45E-08
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Hand
Operating Range (m)	From 0,3 to 8
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1230 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	1161
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)

Safety level	Type 2 - PL c
Protected height (mm)	1060
Resolution (mm)	30
Max. range (m)	8
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2
Operating temperature (°C)	0 ... 55
Response time (ms)	33
Number of beams	56
Max. length of the connection cables (m)	100
Muting Function	Integrated
Muting logic	T (Two way) logic with 2 sensors - Crossed beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec.; 90 min. or infinite selectable
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M16 12-pole connector (receiver)
MTTFD (ISO13849) years	76,64
PFHD (IEC 61508)	9,45E-08
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Hand
Operating Range (m)	From 0,3 to 8
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1230 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	1161
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)
