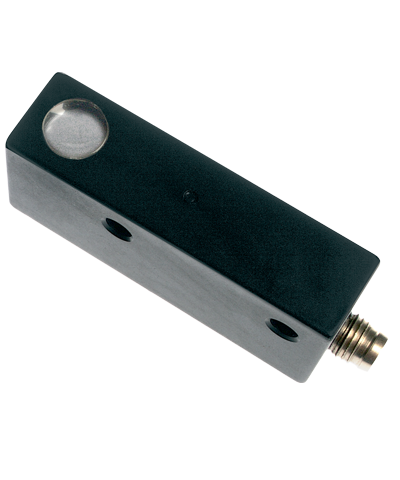

ULISSE UPC

Safety Photocell, PNP output, Metal body

Type 2 - PL c

Safety level

Photocells

Sensor type

Request info

Download Pdf

Technical Description
Technical Data
Documents
Certificates
Technical Drawings

Metal body

Features

Safety level	Type 2 - PL c
Max. range (m)	6
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C)	0 ... 55
Response time (ms)	8
Sensor type	Photocells
Safety output type	PNP, max 100 mA light on
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000804
Safety outputs	1 PNP max 100 mA light on
Safety functions	With external module
Detection	Access control
Protective enclosures	None
Packaging dimensions HxLxW (mm)	26 x 52 x 104
Product class	C
Custom tariff	8541900000
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Degree of protection	IP65
Fastening	A4.5 screws

Technical Manuals

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Product Catalogues and Brochures

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Sistema Libraries

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

TÜV SÜD certificate - ULISSE Photocells

Download

CAD Drawing

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical drawings

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical Description

Metal body

Technical Data

Features

Safety level	Type 2 - PL c
Max. range (m)	6
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C)	0 ... 55
Response time (ms)	8
Sensor type	Photocells
Safety output type	PNP, max 100 mA light on
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000804
Safety outputs	1 PNP max 100 mA light on
Safety functions	With external module
Detection	Access control
Protective enclosures	None
Packaging dimensions HxLxW (mm)	26 x 52 x 104
Product class	C
Custom tariff	8541900000
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Degree of protection	IP65
Fastening	A4.5 screws

Documents

Technical Manuals

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Product Catalogues and Brochures

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Sistema Libraries

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Certificates

TÜV SÜD certificate - ULISSE Photocells

Download

Technical Drawings

CAD Drawing

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical drawings

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
