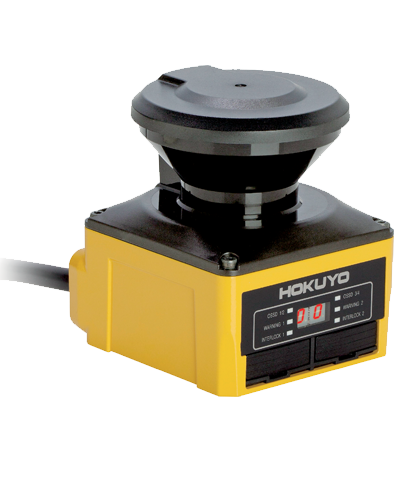

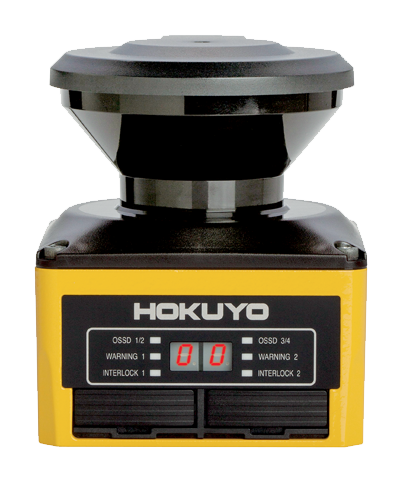

UAM-05LP-T301C

Safety Laser Scanner, with connector

PL d

Safety level

Laser scanner

Sensor type

Request info

Download Pdf

Technical Description
Technical Data
Documents
Certificates
Technical Drawings
Software

Safety laser scanner with 5 m and 270-degree-angle protection range, 20 m warning range.
With pig-tail connector.
Configuration interface: USB2.0.
2 inputs for Encoders

Features

Safety level	PL d
Restart	Integrated and selectable
Safety level (SIL / PL)	SIL 2 - SILCL 2 - PL d - Cat. 3
Operating temperature (°C)	- 10 ... 50
Response time (ms)	OFF 60 ... 510 / ON 270 ... 510
Sensor type	Laser scanner
Connections	Connector with cable (30 cm)
PFHD (IEC 61508)	1,6E-07 (T1 = 20 years) (master/slave function used)
Safety zone min. target reflectivity	10% at 20 m
Safety zone resolution (mm)	30 mm max. 1,8 m - 50 mm max. 3 m - 70 mm max. 5 m
Warning zone min. target reflectivity	20% at 15 m
Warning zone resolution	Depending on target distance
Warning zone max. range (m)	Max 20 when reflectance of the object is 90% or above
Safety zone max. range (m)	Max. 5
Light source	Pused laser diode
Memory configuration module	SD Card
Warning zones	Up to 2 programmable
Safety zones	Up to 2 simultenaously programmable
Outputs	High side SW max. 500 mA (OSSD 1/2, OSSD 3/4, Warning 1/2) / Ethernet 100BAS-TX (data) / Transistor PNP max. 200 mA (RES_REQ 1/2 MUT_OUT 1/2)
Safety outputs	4 OSSD
Storage temperature (°C)	- 25 … 70
LED signalling	7 segment display and LEDs indicate the UAM status
USB input	USB 2.0 (USB micro type-B connector)
Relative humidity	95% RH with no condensation
Max. number of encoders	1
Max. number of axes	1
Packaging dimensions HxLxW (mm)	260 x 230 x 260
Detection Range	270° / 5 m radius
Product class	C
Custom tariff	9013200000
Connection type	Connector

Electrical data

Power supply (VDC)	24 V ± 10% (Converter power supply) 24 V -30% +20% (battery)
Laser wave lenght (nm)	905

Mechanical data

Dimensions HxWxD (mm)	95 x 80 x 80
Degree of protection	IP65
Fastening	Using UAM-BKxx fixing brackets
Housing	Body: aluminum / Optical window: polycarbonate
