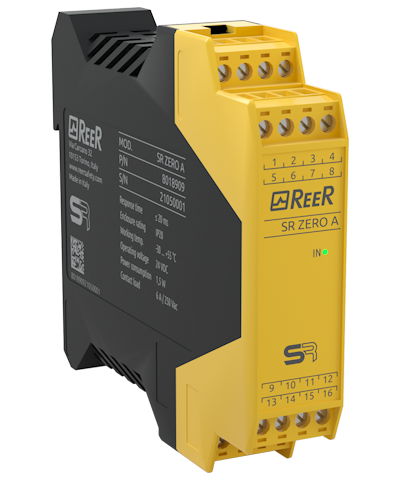

SR ZERO A

Safety interface, relay with 2 NO contacts

PL e

Safety level

2 NO (6A at 250 VAC)

Safety relay outputs

Request info

Download Pdf

Technical Description
Technical Data
Documents
Certificates
Technical Drawings

Safety relay modules for safety light curtains with feedback input for EDM, such as EOS4X, Admiral AX, etc.

With forcibly guided contact safety relays, 2 NO

Features

Safety level	PL e
Safety level (SIL / PL)	PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	≤ 20
Signalling	LEDs indication for input status
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	The values depend on the type of use. Refer to the technical manual
Safety devices to be connected	Safety devices with feedback input for external relay monitor (EDM), such us EOS4 X , EOS2 X, Admiral AX, Vision VX/VXL/MXL and Janus
Safety relay outputs	2 NO (6A at 250 VAC)
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8536508090

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Dimensions HxWxD (mm)	99 x 22,5 x 114,5
Degree of protection	IP2X
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Technical Manuals

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Product Catalogues and Brochures

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Sistema Libraries

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

TÜV SÜD certificate - SR Safety interface modules

Download

CAD Drawing

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical drawings

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

E-Plan

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical Description

Safety relay modules for safety light curtains with feedback input for EDM, such as EOS4X, Admiral AX, etc.

With forcibly guided contact safety relays, 2 NO

Technical Data

Features

Safety level	PL e
Safety level (SIL / PL)	PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	≤ 20
Signalling	LEDs indication for input status
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	The values depend on the type of use. Refer to the technical manual
Safety devices to be connected	Safety devices with feedback input for external relay monitor (EDM), such us EOS4 X , EOS2 X, Admiral AX, Vision VX/VXL/MXL and Janus
Safety relay outputs	2 NO (6A at 250 VAC)
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8536508090

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Dimensions HxWxD (mm)	99 x 22,5 x 114,5
Degree of protection	IP2X
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
