SFRD4 301 A - Next Generation Automatic Safety Light Curtains

Automatic Restart

Type 4 - PL e

Safety level

300

Protected height (mm)

Resolution (mm)

Max. range (m)

Automatic

Restart

Emitter / Receiver

Functioning system

Request info

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 28 x 33 mm
No blind area on both side
Hardware configuration: no programming necessary, easy to install and replace

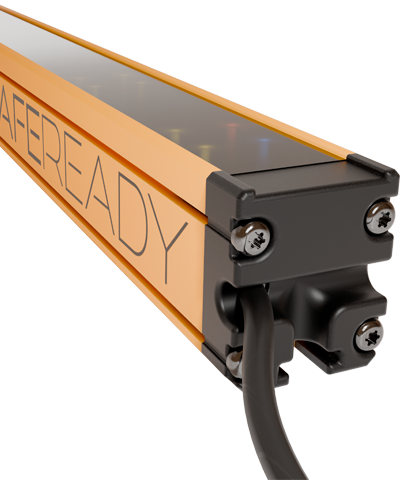

Connection and configuration through M12 pig-tail connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

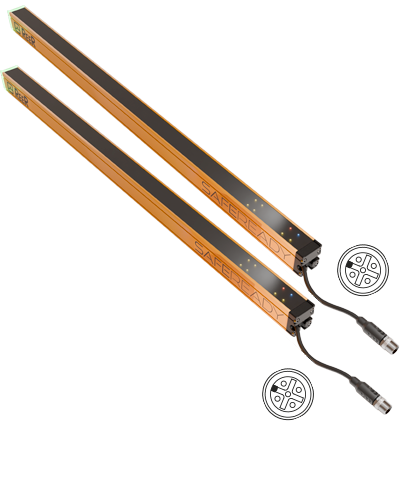

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

CAD Drawing

Technical drawings

Technical Description

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	300
Resolution (mm)	14
Controlled height (mm)	297
Max. range (m)	8
Restart	Automatic
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	See technical manual
Number of beams	30
Max. length of the connection cables (m)	100

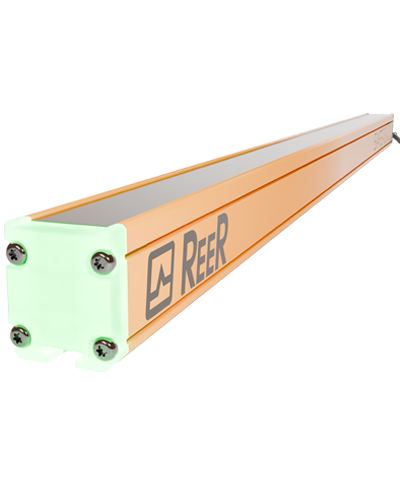

Signalling	LEDs and top LED cap for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male pigtail connector (emitter), M12 5-pole male pigtail connector (receiver)
MTTFD (ISO13849) years	20
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Storage temperature (°C)	- 30 … 70
Relative humidity	50% @ 70 °C / 90% @ 20 °C
Safety functions	With external module
Detection	Finger
Operating Range (m)	Selectable: 0 ... 4 m - low range / 3 ... 8 m - high range
Protective enclosures	None
Product class	B

Beam spacing (mm)	10
Overall height (mm)	315
Cross section dimensions (mm)	28 x 33
Degree of protection	IP65 - IP67
Fastening	Back slot with set of brackets (included)

Safety level	Type 4 - PL e
Protected height (mm)	300
Resolution (mm)	14
Controlled height (mm)	297
Max. range (m)	8
Restart	Automatic
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	See technical manual
Number of beams	30
Max. length of the connection cables (m)	100
Signalling	LEDs and top LED cap for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male pigtail connector (emitter), M12 5-pole male pigtail connector (receiver)
MTTFD (ISO13849) years	20
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Storage temperature (°C)	- 30 … 70
Relative humidity	50% @ 70 °C / 90% @ 20 °C
Safety functions	With external module
Detection	Finger
Operating Range (m)	Selectable: 0 ... 4 m - low range / 3 ... 8 m - high range
Protective enclosures	None
Product class	B

Beam spacing (mm)	10
Overall height (mm)	315
Cross section dimensions (mm)	28 x 33
Degree of protection	IP65 - IP67
Fastening	Back slot with set of brackets (included)
