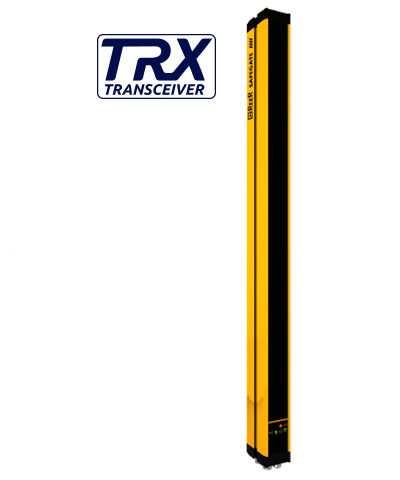

SAFEGATE S 4B TRX

Automatic restart (No Muting), TRX

Type 4 - PL e

Safety level

910

Protected height (mm)

Multi-beams

Resolution (mm)

Max. range (m)

Automatic

Restart

TRX (Transceiver)

Functioning system

Built-in Muting lamp

Request info

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 50 x 55 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

UL Mark for USA and Canada

Download

TÜV SÜD certificate - SAFEGATE Safety Light Curtains

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - SAFEGATE Safety Light Curtains

Download

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	Multi-beams
Controlled height (mm)	949,5
Max. range (m)	8
Restart	Automatic
Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	5,5
Number of beams	4
Max. length of the connection cables (m)	100
Built-in Muting lamp	No
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male connector (active element)
MTTFD (ISO13849) years	399,4
PFHD (IEC 61508)	0,00000000768
Safety outputs	2 fail-safe PNP (400 mA at 24 VDC)
Safety functions	With external module
Detection	Access control
Operating Range (m)	Up to 8
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1130 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1045
Cross section dimensions (mm)	50 x 55
Degree of protection	IP65 - IP67
Fastening	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	Multi-beams
Controlled height (mm)	949,5
Max. range (m)	8
Restart	Automatic
Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	5,5
Number of beams	4
Max. length of the connection cables (m)	100
Built-in Muting lamp	No
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male connector (active element)
MTTFD (ISO13849) years	399,4
PFHD (IEC 61508)	0,00000000768
Safety outputs	2 fail-safe PNP (400 mA at 24 VDC)
Safety functions	With external module
Detection	Access control
Operating Range (m)	Up to 8
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1130 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1045
Cross section dimensions (mm)	50 x 55
Degree of protection	IP65 - IP67
Fastening	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
