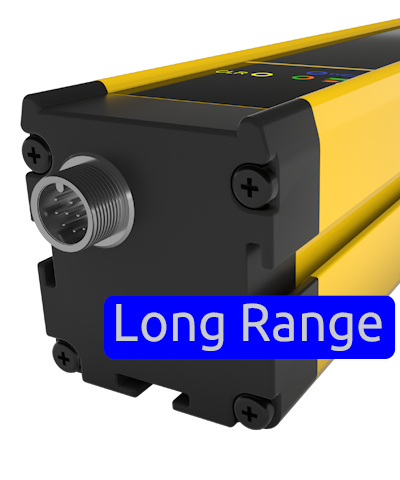

SAFEGATE S 4B LR-A

Automatic restart + EDM (No Muting), Long Range

Type 4 - PL e

Safety level

910

Protected height (mm)

Multi-beams

Resolution (mm)

Max. range (m)

Built-in - Automatic

Restart

Emitter / Receiver

Functioning system

Built-in Muting lamp

Request info

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 50 x 55 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

UL Mark for USA and Canada

Download

TÜV SÜD certificate - SAFEGATE Safety Light Curtains

Download

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - SAFEGATE Safety Light Curtains

Download

Technical Drawings

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	Multi-beams
Controlled height (mm)	956
Max. range (m)	80
Restart	Built-in - Automatic
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	5,5
Number of beams	4
Max. length of the connection cables (m)	100
Built-in Muting lamp	No
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male connector (emitter), M12 5-pole male connector (receiver)
MTTFD (ISO13849) years	253,3
PFHD (IEC 61508)	0,0000000103
Safety outputs	2 fail-safe PNP (400 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Selectable: 6 ... 40 m - low range / 8 ... 80 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1150 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1051
Cross section dimensions (mm)	50 x 55
Degree of protection	IP65 - IP67
Fastening	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	Multi-beams
Controlled height (mm)	956
Max. range (m)	80
Restart	Built-in - Automatic
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	5,5
Number of beams	4
Max. length of the connection cables (m)	100
Built-in Muting lamp	No
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male connector (emitter), M12 5-pole male connector (receiver)
MTTFD (ISO13849) years	253,3
PFHD (IEC 61508)	0,0000000103
Safety outputs	2 fail-safe PNP (400 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Selectable: 6 ... 40 m - low range / 8 ... 80 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1150 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1051
Cross section dimensions (mm)	50 x 55
Degree of protection	IP65 - IP67
Fastening	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
