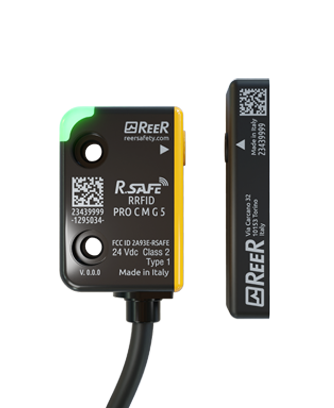

Codage unique : l’actionneur est affecté en permanence au capteur pendant la fabrication (il ne peut pas être remplacé par un autre actionneur)




| Safety level | PL e |
| Safety inputs | 2 entrées numériques |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | Commutateurs RFID |
| Safety output type | 2 OSSD (300 mA à 24 VCC) avec protection contre les courts-circuits |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Oui |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 paires d’OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | Signalisation d’état LED 3 couleurs |
| Coding type | Actionneur codage unique |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Câble |
| Power supply (VDC) | 24 ± 20 % |
| Dimensions HxWxD (mm) | Capteur: 28,5 x 50 x 18 / Actionneur: 9 x 52 x 18 |
| Degree of protection | IP67 – IP69K (connecteur exclu) |
| Fastening | Vis M4 (par exemple, M4 x 20) |
| Housing | Nylon / rectangulaire |
| Switching distance (mm) | 12 ... 25 |
| Size | Capteur entraxe de 22 mm / actionneur entraxe de 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Codage unique : l’actionneur est affecté en permanence au capteur pendant la fabrication (il ne peut pas être remplacé par un autre actionneur)
| Safety level | PL e |
| Safety inputs | 2 entrées numériques |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | Commutateurs RFID |
| Safety output type | 2 OSSD (300 mA à 24 VCC) avec protection contre les courts-circuits |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Oui |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 paires d’OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | Signalisation d’état LED 3 couleurs |
| Coding type | Actionneur codage unique |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Câble |
| Power supply (VDC) | 24 ± 20 % |
| Dimensions HxWxD (mm) | Capteur: 28,5 x 50 x 18 / Actionneur: 9 x 52 x 18 |
| Degree of protection | IP67 – IP69K (connecteur exclu) |
| Fastening | Vis M4 (par exemple, M4 x 20) |
| Housing | Nylon / rectangulaire |
| Switching distance (mm) | 12 ... 25 |
| Size | Capteur entraxe de 22 mm / actionneur entraxe de 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




고유 코딩: 액추에이터는 제조 과정에서 센서에 영구적으로 할당됩니다(다른 액추에이터로 교체할 수 없음).
| Safety level | PL e |
| Safety inputs | 디지털 입력 2개 |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - 범주 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | RFID 스위치 |
| Safety output type | 2 OSSD (24VDC에서 300mA), 단락에 대한 보호 기능 포함 |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | 예 |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD 페어(300 mA) |
| Test outputs | 1 |
| LED signalling | 3색 LED 상태 신호 |
| Coding type | 고유 코드화 |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | 케이블 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 센서: 28,5 x 50 x 18 / 슬림 액추에이터: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (커넥터 제외) |
| Fastening | M4 나사(예: M4 x 20) |
| Housing | Nylon / 직사각형 |
| Switching distance (mm) | 12 ... 25 |
| Size | 센서: 축간 22mm / 슬림 액추에이터: 축간 40mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
고유 코딩: 액추에이터는 제조 과정에서 센서에 영구적으로 할당됩니다(다른 액추에이터로 교체할 수 없음).
| Safety level | PL e |
| Safety inputs | 디지털 입력 2개 |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - 범주 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | RFID 스위치 |
| Safety output type | 2 OSSD (24VDC에서 300mA), 단락에 대한 보호 기능 포함 |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | 예 |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD 페어(300 mA) |
| Test outputs | 1 |
| LED signalling | 3색 LED 상태 신호 |
| Coding type | 고유 코드화 |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | 케이블 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 센서: 28,5 x 50 x 18 / 슬림 액추에이터: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (커넥터 제외) |
| Fastening | M4 나사(예: M4 x 20) |
| Housing | Nylon / 직사각형 |
| Switching distance (mm) | 12 ... 25 |
| Size | 센서: 축간 22mm / 슬림 액추에이터: 축간 40mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




独特的编码:在制造过程中,执行器被永久地分配给传感器(它不能被另一个执行器取代)
| Safety level | PL e |
| Safety inputs | 2个数字输入 |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | -25到70 |
| Response time (ms) | 55 |
| Sensor type | 下一代RFID安全传感器 |
| Safety output type | 2 PNP ( 300 mA, 24 VDC下),自控制,带短路、过载 |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | 是 |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 对OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 色 LED 状态信号 |
| Coding type | 独特编码 |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | 电缆 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 传感器: 28,5 x 50 x 18 / 薄型执行器: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (排除连接器) |
| Fastening | M4螺钉(如M4 x 20)。 |
| Housing | Nylon / 矩形 |
| Switching distance (mm) | 12 ... 25 |
| Size | 传感器: 22 mm interaxis / 薄型执行器: 40 mm interaxis |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
独特的编码:在制造过程中,执行器被永久地分配给传感器(它不能被另一个执行器取代)
| Safety level | PL e |
| Safety inputs | 2个数字输入 |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | -25到70 |
| Response time (ms) | 55 |
| Sensor type | 下一代RFID安全传感器 |
| Safety output type | 2 PNP ( 300 mA, 24 VDC下),自控制,带短路、过载 |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | 是 |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 对OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 色 LED 状态信号 |
| Coding type | 独特编码 |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | 电缆 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 传感器: 28,5 x 50 x 18 / 薄型执行器: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (排除连接器) |
| Fastening | M4螺钉(如M4 x 20)。 |
| Housing | Nylon / 矩形 |
| Switching distance (mm) | 12 ... 25 |
| Size | 传感器: 22 mm interaxis / 薄型执行器: 40 mm interaxis |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Codificação única: o actuador é permanentemente atribuído ao sensor durante o fabrico (não pode ser substituído por outro actuador)
| Safety level | PL e |
| Safety inputs | 2 entradas digitais |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | De -25 a 70 |
| Response time (ms) | 55 |
| Sensor type | Sensor de segurança RFID |
| Safety output type | 2 PNP (300 mA a 24 Vcc) com proteção contra curto-circuito e sobrecarga |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Sim |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 pares OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | LED de 3 cores para sinalização de status |
| Coding type | Atuador com codificação única |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cabo |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Atuador: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (conector excluído) |
| Fastening | Parafuso M4 (por exemplo: M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: Entre-eixo de 22 mm / Atuador: Entre-eixo de 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Codificação única: o actuador é permanentemente atribuído ao sensor durante o fabrico (não pode ser substituído por outro actuador)
| Safety level | PL e |
| Safety inputs | 2 entradas digitais |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | De -25 a 70 |
| Response time (ms) | 55 |
| Sensor type | Sensor de segurança RFID |
| Safety output type | 2 PNP (300 mA a 24 Vcc) com proteção contra curto-circuito e sobrecarga |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Sim |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 pares OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | LED de 3 cores para sinalização de status |
| Coding type | Atuador com codificação única |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cabo |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Atuador: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (conector excluído) |
| Fastening | Parafuso M4 (por exemplo: M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: Entre-eixo de 22 mm / Atuador: Entre-eixo de 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Codificación única: el actuador se asigna permanentemente al sensor durante la fabricación (no puede sustituirse por otro actuador)
| Safety level | PL e |
| Safety inputs | 2 entradas digitales |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | Desde -25 a 70 |
| Response time (ms) | 55 |
| Sensor type | Sensor de seguridad RFID |
| Safety output type | 2 OSSD (300 mA a 24 Vcc) con protección contra cortocircuito y sobrecarga |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Sí |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 pares OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | LED de 3 colores para señalización de estado |
| Coding type | Actuador de Codificación única |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cable |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Actuador: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (conector excluido) |
| Fastening | Tornillo M4 (por ejemplo: M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: 22 mm entreejes / Actuador: 40 mm entreejes |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Codificación única: el actuador se asigna permanentemente al sensor durante la fabricación (no puede sustituirse por otro actuador)
| Safety level | PL e |
| Safety inputs | 2 entradas digitales |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | Desde -25 a 70 |
| Response time (ms) | 55 |
| Sensor type | Sensor de seguridad RFID |
| Safety output type | 2 OSSD (300 mA a 24 Vcc) con protección contra cortocircuito y sobrecarga |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Sí |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 pares OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | LED de 3 colores para señalización de estado |
| Coding type | Actuador de Codificación única |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cable |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Actuador: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (conector excluido) |
| Fastening | Tornillo M4 (por ejemplo: M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: 22 mm entreejes / Actuador: 40 mm entreejes |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Eindeutige Kodierung: der Betätiger wird dem Sensor bei der Herstellung fest zugeordnet (er kann nicht durch einen anderen Betätiger ersetzt werden)
| Safety level | PL e |
| Safety inputs | 2 Digitaleingänge |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Kat. 4 |
| Operating temperature (°C) | Von -25 bis 70 |
| Response time (ms) | 55 |
| Sensor type | RFID Sicherheitssensor |
| Safety output type | 2 OSSD (300 mA bei 24 VDC) mit Kurzschluss-, Überlast |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Ja |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 paare OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | 3-farbige LED-Statussignalisierung |
| Coding type | Individuelle Kodierungsaktuator |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Kabel |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Aktuator: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (Stecker ausgeschlossen) |
| Fastening | M4 schraube (z.B. M4 x 20) |
| Housing | Nylon / rechteckig |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: 22 mm Abstand / Aktuator: 40 mm Abstand |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Eindeutige Kodierung: der Betätiger wird dem Sensor bei der Herstellung fest zugeordnet (er kann nicht durch einen anderen Betätiger ersetzt werden)
| Safety level | PL e |
| Safety inputs | 2 Digitaleingänge |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Kat. 4 |
| Operating temperature (°C) | Von -25 bis 70 |
| Response time (ms) | 55 |
| Sensor type | RFID Sicherheitssensor |
| Safety output type | 2 OSSD (300 mA bei 24 VDC) mit Kurzschluss-, Überlast |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Ja |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 paare OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | 3-farbige LED-Statussignalisierung |
| Coding type | Individuelle Kodierungsaktuator |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Kabel |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Aktuator: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (Stecker ausgeschlossen) |
| Fastening | M4 schraube (z.B. M4 x 20) |
| Housing | Nylon / rechteckig |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor: 22 mm Abstand / Aktuator: 40 mm Abstand |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Codifica unica: L'attuatore è definitivamente assegnato al sensore durante il processo di produzione (non può essere sostituito da un altro attuatore)
| Safety level | PL e |
| Safety inputs | 2 ingressi digitali |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | Interruttori RFID |
| Safety output type | 2 OSSD (300 mA a 24 Vcc) con protezione contro corto circuiti |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Si |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 coppie OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | Led a 3 colori per segnalzione dello stato |
| Coding type | Attuatore con codifica Unica |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cavo |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensore: 28,5 x 50 x 18 / Attuatore: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (connettore escluso) |
| Fastening | VitI M4 (ad esempio: M4 x 20) |
| Housing | Nylon / rettangolare |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensore interasse 22 mm / Attuartore interasse 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Codifica unica: L'attuatore è definitivamente assegnato al sensore durante il processo di produzione (non può essere sostituito da un altro attuatore)
| Safety level | PL e |
| Safety inputs | 2 ingressi digitali |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | Interruttori RFID |
| Safety output type | 2 OSSD (300 mA a 24 Vcc) con protezione contro corto circuiti |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Si |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 coppie OSSD (300 mA) |
| Test outputs | 1 |
| LED signalling | Led a 3 colori per segnalzione dello stato |
| Coding type | Attuatore con codifica Unica |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cavo |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensore: 28,5 x 50 x 18 / Attuatore: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (connettore escluso) |
| Fastening | VitI M4 (ad esempio: M4 x 20) |
| Housing | Nylon / rettangolare |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensore interasse 22 mm / Attuartore interasse 40 mm |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)
| Safety level | PL e |
| Safety inputs | 2 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | RFID switches |
| Safety output type | 2 OSSD (300 mA at 24 VDC) with protection against short circuit |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Yes |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD pairs (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 colour LED status signalling |
| Coding type | Unique Coding Actuator |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cable |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Actuator: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (connector excluded) |
| Fastening | M4 screws (e.g. M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor 22 mm interaxis / Actuator 40 mm interaxis |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)
| Safety level | PL e |
| Safety inputs | 2 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | RFID switches |
| Safety output type | 2 OSSD (300 mA at 24 VDC) with protection against short circuit |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Yes |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD pairs (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 colour LED status signalling |
| Coding type | Unique Coding Actuator |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cable |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Actuator: 9 x 52 x 18 |
| Degree of protection | IP67 - IP69K (connector excluded) |
| Fastening | M4 screws (e.g. M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 ... 25 |
| Size | Sensor 22 mm interaxis / Actuator 40 mm interaxis |
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Accessori
Prodotti correlati
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm




Staffe

Relè
