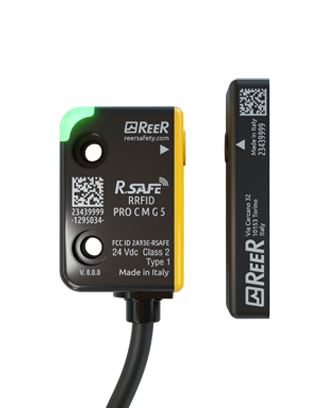

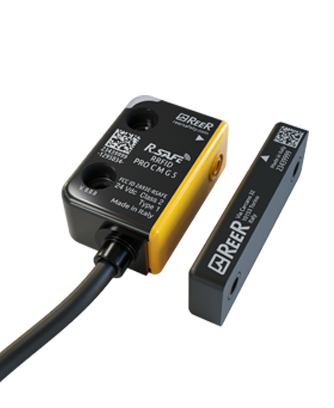

R-SAFE RFID PRO C M U 3

Combo (sensor + slim actuator), Unique coding, 3 m 8-pole cable, individual status output, interaxis sensor 22 mm / actuator 40 mm

PL e

Safety level

RFID switches

Sensor type

Unique Coding Actuator

Coding type

12 ... 25

Switching distance (mm)

Request info

Download Pdf

Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
PFHD (IEC 61508)	0,00000000218
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Coding type	Unique Coding Actuator
Product class	A
Custom tariff	9032890090
Connection type	Cable

Power supply (VDC)	24 ± 20%

Dimensions HxWxD (mm)	Sensor: 28,5 x 50 x 18 / Actuator: 9 x 52 x 18
Degree of protection	IP67 - IP69K (connector excluded)
Fastening	M4 screws (e.g. M4 x 20)
Housing	Nylon / rectangular
Switching distance (mm)	12 ... 25
Size	Sensor 22 mm interaxis / Actuator 40 mm interaxis
