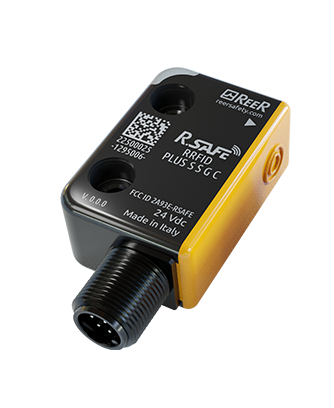

R-SAFE RFID PLUS S S G C

Sensor, Generic coding, M12 8-pole connector, serial status output, interaxis 22 mm

PL e

Safety level

RFID switches

Sensor type

Generic Coding Actuator

Coding type

12 ... 25

Switching distance (mm)

Request info

Generic Coding: the actuator is free and not specifically assigned to the sensor (one actuator can work with multiple sensors)

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

TÜV SÜD certificate - R-SAFE RFID Safety switches

Download

UL Mark for USA and Canada

Download

CAD Drawing

Technical drawings

E-Plan

Technical Description

Generic Coding: the actuator is free and not specifically assigned to the sensor (one actuator can work with multiple sensors)

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

TÜV SÜD certificate - R-SAFE RFID Safety switches

Download

UL Mark for USA and Canada

Download

Technical Drawings

CAD Drawing

Technical drawings

E-Plan

Cables

Brackets

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Coding type	Generic Coding Actuator
Product class	A
Custom tariff	9032890090
Connection type	Connector

Power supply (VDC)	24 ± 20%
Connector	M12 8-pole Male

Dimensions HxWxD (mm)	28,5 x 57 x 18
Degree of protection	IP67
Fastening	M4 screws (e.g. M4 x 20)
Housing	Nylon / rectangular
Switching distance (mm)	12 ... 25
Size	22 mm interaxis

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Coding type	Generic Coding Actuator
Product class	A
Custom tariff	9032890090
Connection type	Connector

Power supply (VDC)	24 ± 20%
Connector	M12 8-pole Male
