Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)

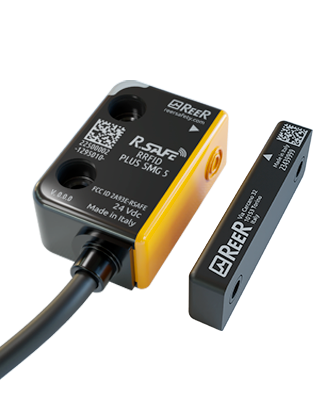

Combo (sensor + slim actuator), Unique coding, 10 m 8-pole cable, serial status output, Interaxis sensor 22 mm / actuator 40 mm
PL e
Safety level
RFID switches
Sensor type
Unique Coding Actuator
Coding type
12 ... 25
Switching distance (mm)
Technical Description
Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)
Accessories
Related Products
1295015
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector with pigtail, interaxis sensor and actuator 22 mm
1294116
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector with pigtail, interaxis sensor 22 mm / actuator 40 mm
1295033
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor and actuator 22 mm
1294152
Combo (sensor + slim actuator), Generic coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
1295005
Combo (sensor + standrd actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor and actuator 22 mm
1294134
Combo (sensor + slim actuator), Generic coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
1295018
Combo (sensor + standard actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
1294119
Combo (sensor + slim actuator), Unique coding, M12 5-pole connector, interaxis sensor and actuator 22 mm
1295036
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, individual status output, interaxis sensor and actuator 22 mm
1294155
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, individual status output, interaxis sensor 22 mm / actuator 40 mm
1295008
Combo (sensor + standard actuator), Unique coding, M12 8-pole connector, serial status output, interaxis sensor and actuator 22 mm
1294137
Combo (sensor + slim actuator), Unique coding, M12 8-pole connector with pigtail, serial status output, interaxis sensor 22 mm / actuator 40 mm
