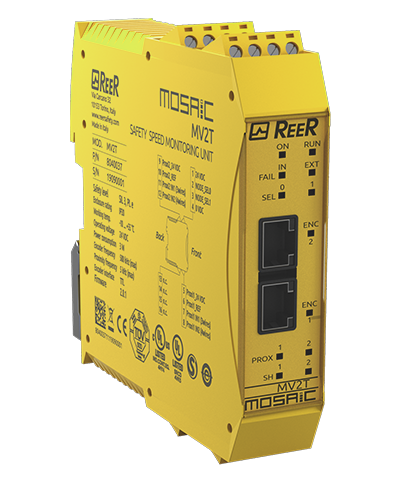

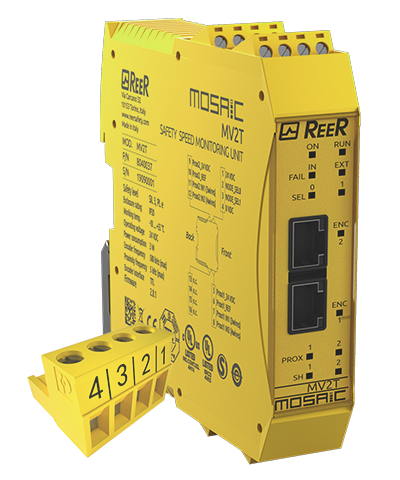

Safety Speed Monitoring Expansion Unit. 2 Inputs for TTL Encoders. Screw Terminal Blocks
1100073
Speed Monitoring Expansion Unit, 2 inputs TTL, Screw terminal blocks
Safety Speed Monitoring (up to PL e) for: zero speed control, max. speed, speed range and direction control
RJ-45 connectors for encoders and terminal blocks for proximity switches
Max. input frequency for encoders: up to 500 KHz (300 KHz for HTL encoder)
Max. input frequency for proximity switches: up to 5 KHz
Includes two configurable logical outputs and is therefore able to control up to two independent axis (configurable via MSD)
Speed Monitoring Expansion Unit, 2 inputs for TTL encoders, Clamp terminal blocks
Speed Monitoring Expansion Unit, 2 inputs TTL, Int. power supply, Screw terminal blocks
Speed Monitoring Expansion Unit, 2 inputs Sin/Cos, Screw terminal blocks
