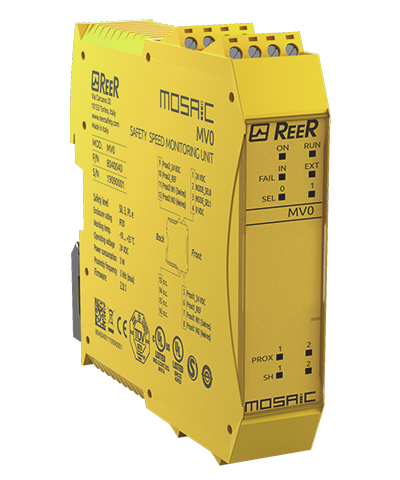

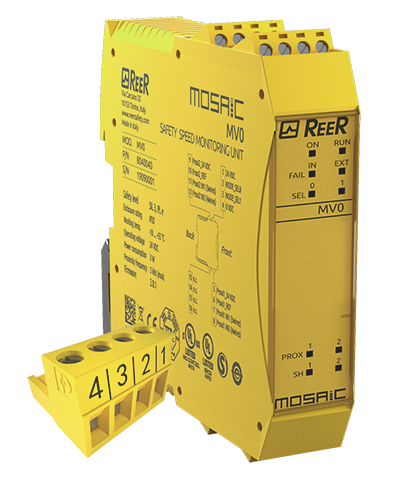

MOSAIC MV0

Speed Monitoring Expansion Unit, 2 inputs proximity switches, Screw terminal blocks

PL e

Safety level

2 digital inputs

Safety inputs

Max. number of proximity

Request info

Safety Speed Monitoring (up to PL e) for: zero speed control, max. speed, speed range and direction control

Terminal block connection for proximity switches
Max. input frequency for proximity switches: up to 5 KHz

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

S-Mark Certificate for Korea - MOSAIC

Download

CAD Drawing

Technical drawings

E-Plan

Technical Description

Safety Speed Monitoring (up to PL e) for: zero speed control, max. speed, speed range and direction control

Terminal block connection for proximity switches
Max. input frequency for proximity switches: up to 5 KHz

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

S-Mark Certificate for Korea - MOSAIC

Download

Technical Drawings

CAD Drawing

Technical drawings

E-Plan

Cables

Components

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis. LED indication of the: proximity/encoder inputs and speed of the controlled axis (within the range, stand still, overspeed) condition
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	30 ... 100
PFHD (IEC 61508)	0,00000000748
Storage temperature (°C)	-20 ... 85
MSC connector provided	Yes
Connection with MSC BUS	Yes
Proximity type	PNP/NPN - 3/4 wires
Proximity connections	Terminal blocks
Max. number of proximity	2
Max. number of axes	2
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis. LED indication of the: proximity/encoder inputs and speed of the controlled axis (within the range, stand still, overspeed) condition
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	30 ... 100
PFHD (IEC 61508)	0,00000000748
Storage temperature (°C)	-20 ... 85
MSC connector provided	Yes
Connection with MSC BUS	Yes
Proximity type	PNP/NPN - 3/4 wires
Proximity connections	Terminal blocks
Max. number of proximity	2
Max. number of axes	2
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Power supply (VDC)	24 ± 20%
Max. proximity frequency (KHz)	5

Power supply (VDC)	24 ± 20%
Max. proximity frequency (KHz)	5
