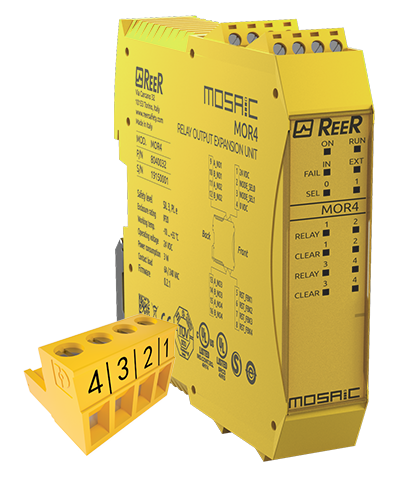

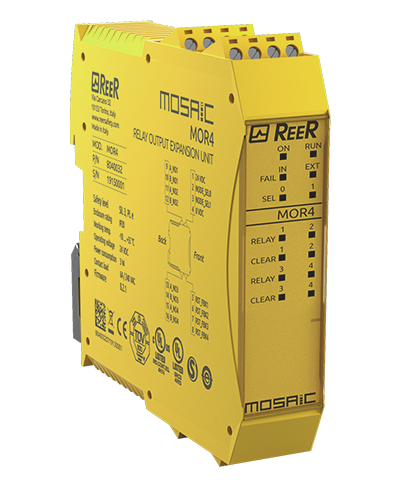

MOSAIC MOR4

Expansion Unit, 4 safety relay outputs, Screw terminal blocks

PL e

Safety level

Request info

Provides 4 configurable guided contact safety relays

It allows to select the safety category via the MSD software:
Safety Cat. 1: 4 independent single channel outputs
Safety Cat. 2: 4 independent single channel outputs with OTE (Output Test Equipment)
Safety Cat. 4: 2 independent double channels outputs

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

S-Mark Certificate for Korea - MOSAIC

Download

CAD Drawing

Technical drawings

E-Plan

Technical Description

Provides 4 configurable guided contact safety relays

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

S-Mark Certificate for Korea - MOSAIC

Download

Technical Drawings

CAD Drawing

Technical drawings

E-Plan

Components

Safety level	PL e
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis. LED indication of the: relay outputs and reset request condition
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	0,0000000029
Storage temperature (°C)	-20 ... 85
MSC connector provided	Yes
Connection with MSC BUS	Yes
Start/Restart inputs and EDM	4
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Safety level	PL e
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis. LED indication of the: relay outputs and reset request condition
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	0,0000000029
Storage temperature (°C)	-20 ... 85
MSC connector provided	Yes
Connection with MSC BUS	Yes
Start/Restart inputs and EDM	4
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	A
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
