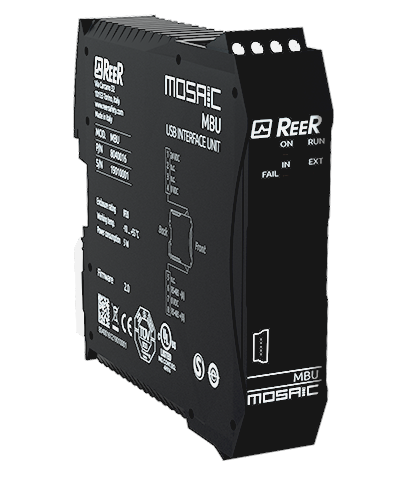

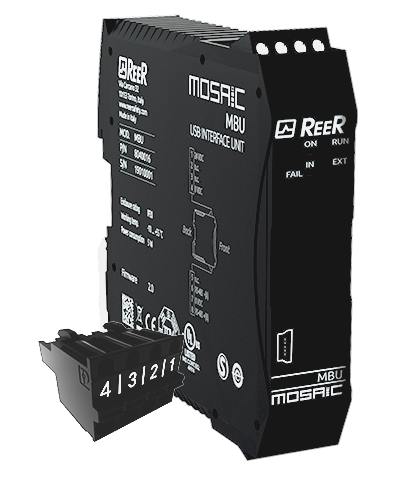

MOSAIC MBUC

Interface Unit, USB, Clamp terminal blocks

Request info

Expansion unit for connection to the most common industrial Field-Bus systems for diagnostics and data communication

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

CAD Drawing

Technical drawings

E-Plan

Download

BUS Configurator software - Rev. 5.1.1

Download

Technical Description

Expansion unit for connection to the most common industrial Field-Bus systems for diagnostics and data communication

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate

Download

Technical Report for the testing of the Series

Download

Technical report - List for tracking the version releases

Download

Technical Drawings

CAD Drawing

Technical drawings

E-Plan

Configuration files

Download

Software

BUS Configurator software - Rev. 5.1.1

Download

Components

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, clamp contacts
Storage temperature (°C)	-20 ... +85
MSC connector provided	Yes
Connection with MSC BUS	Yes
USB input	Yes
Fieldbus interfaces	USB
Packaging dimensions HxLxW (mm)	36 x 127 x 113
Product class	B
Custom tariff	85371091

Dimensions HxWxD (mm)	99 x 22,5 x 114
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, clamp contacts
Storage temperature (°C)	-20 ... +85
MSC connector provided	Yes
Connection with MSC BUS	Yes
USB input	Yes
Fieldbus interfaces	USB
Packaging dimensions HxLxW (mm)	36 x 127 x 113
Product class	B
Custom tariff	85371091

Dimensions HxWxD (mm)	99 x 22,5 x 114
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
