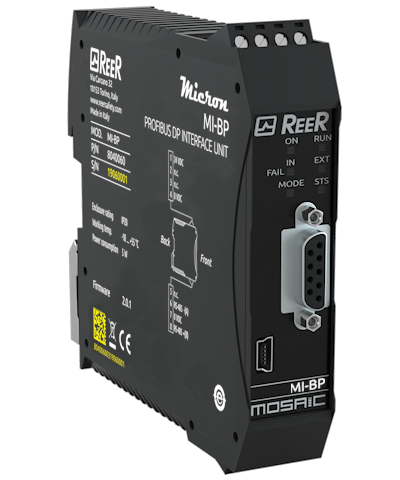

MICRON MI-BP

Add to favorites

Fielbus Communication Unit for Measurement Light Curtain. Profibus

1250500

Request info

Expansion Unit for connect Micron light curtain to the most common industrial Field-bus systems for diagnostics and data communication

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

UL Mark for USA and Canada

Download

CAD Drawing

Technical drawings

MI-BP Profibus configuration file

Download

Technical Description

Expansion Unit for connect Micron light curtain to the most common industrial Field-bus systems for diagnostics and data communication

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

UL Mark for USA and Canada

Download

Technical Drawings

CAD Drawing

Technical drawings

Configuration Files

MI-BP Profibus configuration file

Download

Discover our webinar - Technical and application insight

User Registration

Name

Surname

Company

Email

Industry

Type of customer

Country

State/Province

Password

Eight characters minimum One lowercase letter One uppercase letter One number One special character

Confirm Password

Privacy information

I agree with the handling of data as per Privacy Policy.

Newsletter

Subscribe to the newsletter to be updated on our latest news

Text

This site is registered on wpml.org as a development site.

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, screw contacts
Storage temperature (°C)	-20 ... 85
Fieldbus interfaces	PROFIBUS
Packaging dimensions HxLxW (mm)	57 x 158 x 134
Product class	C
Custom tariff	85371091

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
Gross weight (g)	236

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, screw contacts
Storage temperature (°C)	-20 ... 85
Fieldbus interfaces	PROFIBUS
Packaging dimensions HxLxW (mm)	57 x 158 x 134
Product class	C
Custom tariff	85371091

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
Gross weight (g)	236
