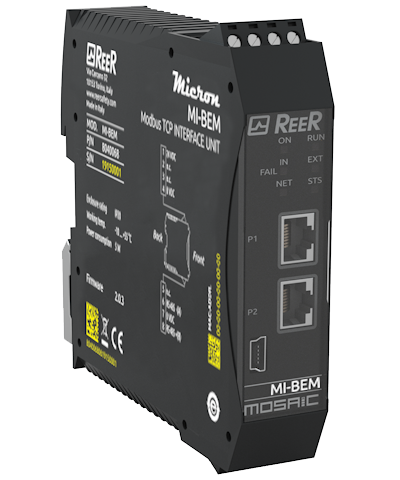

MICRON MI-BEM

Interface Unit for Micron, ModBus TCP/IP

Request info

Expansion Unit for connect Micron light curtain to the most common industrial Field-bus systems for diagnostics and data communication

UL Mark for USA and Canada

BUS Configurator software Micron - Rev. 5.1.1

Expansion Unit for connect Micron light curtain to the most common industrial Field-bus systems for diagnostics and data communication

UL Mark for USA and Canada

BUS Configurator software Micron - Rev. 5.1.1

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, screw contacts
Storage temperature (°C)	-20 ... 85
USB input	Yes
Fieldbus interfaces	ModBus TCP
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	C
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Operating temperature (°C)	- 10 ... 55
Signalling	LEDs indication for operating status and fault diagnosis
Connections	Removable terminal blocks, screw contacts
Storage temperature (°C)	-20 ... 85
USB input	Yes
Fieldbus interfaces	ModBus TCP
Packaging dimensions HxLxW (mm)	36 x 128 x 118
Product class	C
Custom tariff	8537109199

Dimensions HxWxD (mm)	108 x 22,5 x 114,5
Degree of protection	IP20 for housing - IP2X for terminal block
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Technical Description
