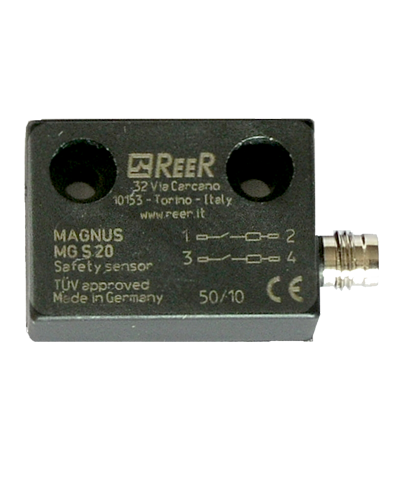

MAGNUS MG S 20

Aggiungi ai preferiti:

Magnetic Safety Switch. Sensor Only. 2 NO contacts. M8 connector. Interaxis 22 mm

1291000

Magnetic switch, Small, 2NO, M8 connector, Interaxis 22 mm

Magnetic switches

Sensor type

3 ... 10

Switching distance (mm)

Request info

Features

Mechanical data

Technical Manuals

Product Catalogues and Brochures

TÜV NORD Certificate - Magnus MG

Download

CAD Drawing

Technical drawings

Technical Data

Features

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

TÜV NORD Certificate - Magnus MG

Download

Technical Drawings

CAD Drawing

Technical drawings

Cables

Relè

Discover our webinar - Technical and application insight

User Registration

Name

Surname

Company

Email

Industry

Type of customer

Country

State/Province

Password

Eight characters minimum One lowercase letter One uppercase letter One number One special character

Confirm Password

Privacy information

I agree with the handling of data as per Privacy Policy.

Newsletter

Subscribe to the newsletter to be updated on our latest news

Captcha

Operating temperature (°C)	- 25 ... 75
Sensor type	Magnetic switches
Connections	M8 4-pole connector
Product class	C
Custom tariff	9032890090
Connection type	Connector

Dimensions HxWxD (mm)	36 x 26 x 13
Degree of protection	IP67
Fastening	M4 screws with flat head (e.g. M4 cheese head screws ISO 4762)
Contacts	2 NO contacts
Housing	Thermoplastic enclosure (PBT)
Switching distance (mm)	3 ... 10
Size	22 mm interaxis

Operating temperature (°C)	- 25 ... 75
Sensor type	Magnetic switches
Connections	M8 4-pole connector
Product class	C
Custom tariff	9032890090
Connection type	Connector

Dimensions HxWxD (mm)	36 x 26 x 13
Degree of protection	IP67
Fastening	M4 screws with flat head (e.g. M4 cheese head screws ISO 4762)
Contacts	2 NO contacts
Housing	Thermoplastic enclosure (PBT)
Switching distance (mm)	3 ... 10
Size	22 mm interaxis

MAGNUS MG S 20

Technical Data

Documents

Certificates

Technical Drawings

Accessories

Related Products

MAGNUS MG S M
