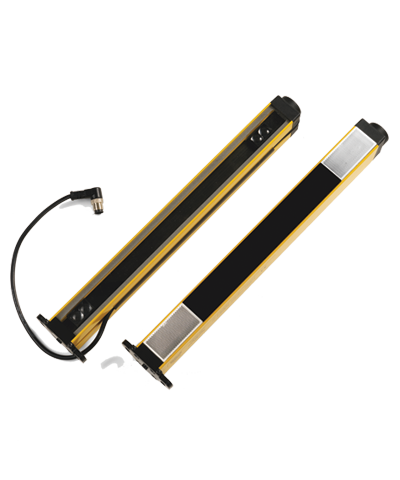

Muting sensor Element for JANUS MM TRX
In combination with Janus MM TRX models form a one-way access control system with L Logic (only exit)
Suitable for High speed conveyor
Muting sensor element for Janus MM TRX, High speed conveyor
3.5
Max. range (m)
TRX (Transceiver)
Functioning system
Features
| Max. range (m) | 3.5 |
| Functioning system | TRX (Transceiver) |
| Operating temperature (°C) | 0 ... 55 |
| Characteristic output of Muting sensors | PNP 100 mA at 24 VDC |
| Integrated optoelectronic sensors | 2 parallel beams |
| Detection | Access control |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 500 x 200 |
| Product class | B |
| Custom tariff | 8538909999 |
Mechanical data
| Fastening | Screws, washers and brakets (included) |
Technical Manuals
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Product Catalogues and Brochures
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Sistema Libraries
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Technical Description
Muting sensor Element for JANUS MM TRX
In combination with Janus MM TRX models form a one-way access control system with L Logic (only exit)
Suitable for High speed conveyor
Technical Data
Features
| Max. range (m) | 3.5 |
| Functioning system | TRX (Transceiver) |
| Operating temperature (°C) | 0 ... 55 |
| Characteristic output of Muting sensors | PNP 100 mA at 24 VDC |
| Integrated optoelectronic sensors | 2 parallel beams |
| Detection | Access control |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 500 x 200 |
| Product class | B |
| Custom tariff | 8538909999 |
Mechanical data
| Fastening | Screws, washers and brakets (included) |
