JANUS ML 3B TRX GV

Type 4 - PL e

Safety level

810

Protected height (mm)

Multi-beams

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

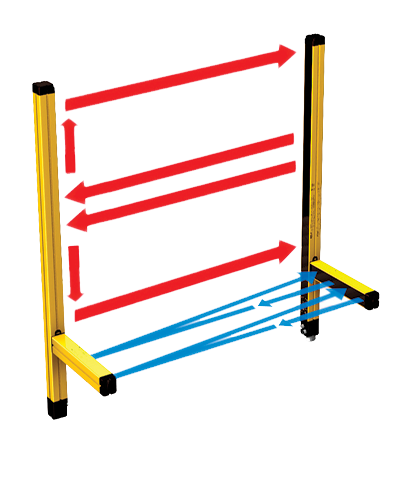

TRX (Transceiver)

Functioning system

Integrated with Muting arms

Muting Function

Request info

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 50 x 60 mm
Hardware configuration: no programming necessary, easy to install and replace
configuration through main connector
Built-in Muting sensors with 2 parallel beams: pre-wired, pre-aligned, adjustable in height and angle

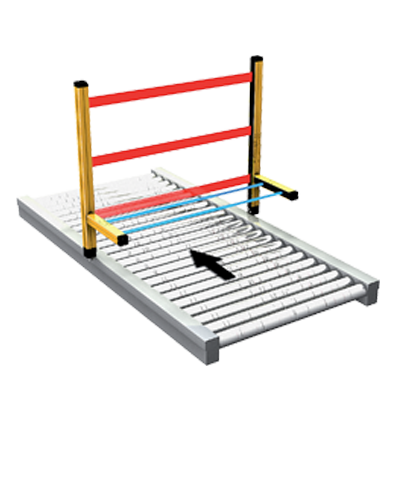

One-way access control system with exit-only L-Muting logic

Muting sensors optimised for the correct and consistent detection of transparent materials (i.e. glass) and longer arms optimised for high-speed conveyors
M12 connectors for external Muting sensors, with operating logic with 2 or 4 sensors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate - JANUS

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - JANUS

Download

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	810
Resolution (mm)	Multi-beams
Max. range (m)	2
Restart	Built-in - User selectable automatic or manual
Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	10,5
Number of beams	3
Max. length of the connection cables (m)	100
Muting Function	Integrated with Muting arms
Muting logic	L (One way) logic with 2 sensors - Parallel beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec. or 90 min. selectable
Characteristic output of Muting sensors	PNP 100 mA at 24 VDC
Muting sensors	2 optoelectronic for glass application, built-in, pre-aligned and pre-wired with parallel beams
Signalling	7 segment display and LEDs for diagnostics, light curtain's status and Muting sensors status
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M23 19-pole connector
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	4,92E-09
Safety outputs	2 fail-safe PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Up to 2
Protective enclosures	None
Packaging dimensions HxLxW (mm)	160 x 1280 x 180
Product class	B
Custom tariff	85365019

Overall height (mm)	1076
Cross section dimensions (mm)	50 x 60
Degree of protection	IP65
Fastening	Back slot, side slot with set of LH type brackets (included). SFB 4J swivel brackets (optional)
Gross weight (g)	9266,6

Safety level	Type 4 - PL e
Protected height (mm)	810
Resolution (mm)	Multi-beams
Max. range (m)	2
Restart	Built-in - User selectable automatic or manual
Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	10,5
Number of beams	3
Max. length of the connection cables (m)	100
Muting Function	Integrated with Muting arms
Muting logic	L (One way) logic with 2 sensors - Parallel beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec. or 90 min. selectable
Characteristic output of Muting sensors	PNP 100 mA at 24 VDC
Muting sensors	2 optoelectronic for glass application, built-in, pre-aligned and pre-wired with parallel beams
Signalling	7 segment display and LEDs for diagnostics, light curtain's status and Muting sensors status
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M23 19-pole connector
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	4,92E-09
Safety outputs	2 fail-safe PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Up to 2
Protective enclosures	None
Packaging dimensions HxLxW (mm)	160 x 1280 x 180
Product class	B
Custom tariff	85365019

Overall height (mm)	1076
Cross section dimensions (mm)	50 x 60
Degree of protection	IP65
Fastening	Back slot, side slot with set of LH type brackets (included). SFB 4J swivel brackets (optional)
Gross weight (g)	9266,6
