JANUS MI 2B TRXL

Type 4 - PL e

Safety level

510

Protected height (mm)

Multi-beams

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

TRX (Transceiver)

Functioning system

Integrated

Muting Function

Request info

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 50 x 60 mm
Hardware configuration: no programming necessary, easy to install and replace
Connections and configuration through main connector
Allows the installation of external Muting sensors
M12 connectors for external Muting sensors, with operating logic with 2 or 4 sensors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate - JANUS

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - JANUS

Download

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	510
Resolution (mm)	Multi-beams
Max. range (m)	6
Restart	Built-in - User selectable automatic or manual

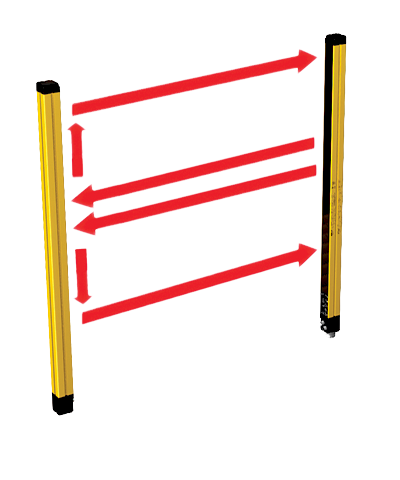

Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	10
Number of beams	2
Max. length of the connection cables (m)	100
Muting Function	Integrated

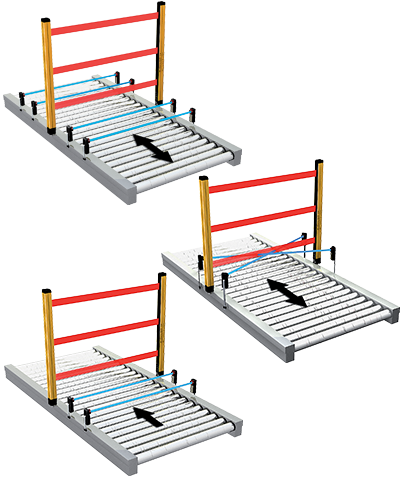

Muting logic	T (Two way) logic with 2 sensors crossed beams. L (One way) logic with 2 sensors crossed or parallel beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec. or 90 min. selectable - 30 sec. or infinite models with 4 sensors
Characteristic output of Muting sensors	PNP 100 mA at 24 VDC
Muting sensors	with relay or PNP DARK-ON output
Signalling	7 segment display and LEDs for diagnostics, light curtain's status and Muting sensors status
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M23 19-pole connector
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	4,83E-09
Safety outputs	2 fail-safe PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Up to 6
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 820 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	741
Cross section dimensions (mm)	50 x 60
Degree of protection	IP65
Fastening	Back slot, side slot with set of LH type brackets (included). SFB 4J swivel brackets (optional)
Gross weight (g)	5244

Safety level	Type 4 - PL e
Protected height (mm)	510
Resolution (mm)	Multi-beams
Max. range (m)	6
Restart	Built-in - User selectable automatic or manual
Functioning system	TRX (Transceiver)
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	10
Number of beams	2
Max. length of the connection cables (m)	100
Muting Function	Integrated
Muting logic	T (Two way) logic with 2 sensors crossed beams. L (One way) logic with 2 sensors crossed or parallel beams
Max. override time-out	15 min.
Max. Muting time-out	30 sec. or 90 min. selectable - 30 sec. or infinite models with 4 sensors
Characteristic output of Muting sensors	PNP 100 mA at 24 VDC
Muting sensors	with relay or PNP DARK-ON output
Signalling	7 segment display and LEDs for diagnostics, light curtain's status and Muting sensors status
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M23 19-pole connector
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	4,83E-09
Safety outputs	2 fail-safe PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Access control
Operating Range (m)	Up to 6
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 820 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	741
Cross section dimensions (mm)	50 x 60
Degree of protection	IP65
Fastening	Back slot, side slot with set of LH type brackets (included). SFB 4J swivel brackets (optional)
Gross weight (g)	5244
