ILION IL 20

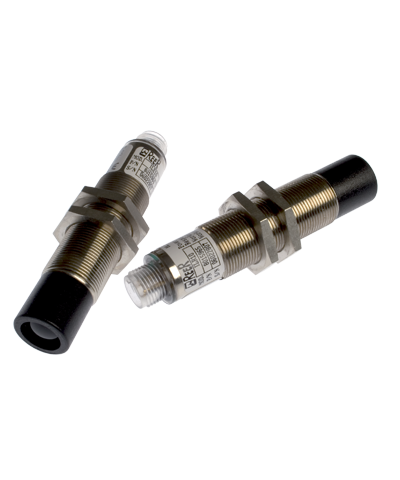

M18 Safety Photocell, 20 m range

Type 2 - PL c

Safety level

Photocells

Sensor type

Request info

Download Pdf

Technical Data
Documents
Certificates
Technical Drawings

Features

Safety level	Type 2 - PL c
Max. range (m)	20
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C)	0 ... 55
Response time (ms)	7 (photocell only)
Sensor type	Photocells
Safety output type	PNP, max 100 mA light on
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000804
Safety outputs	1 PNP max 100 mA light on
LED signalling	Status LED on the emitter and receive
Safety functions	With external module
Detection	Access control
Operating Range (m)	Up to 20
Protective enclosures	None
Product class	C
Custom tariff	8541900000
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Degree of protection	IP67

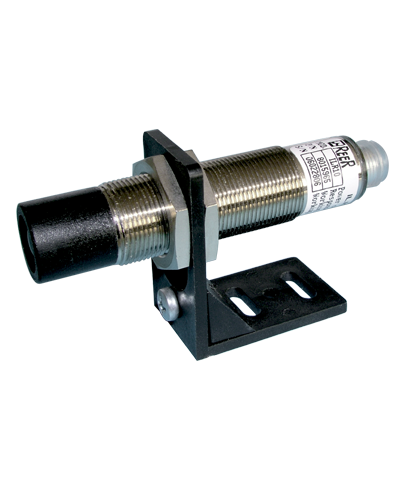

Fastening	2 M18 nuts (included). Set of 2 IL FB adjustable brackets (not included)
Lenght (mm)	85
Diameter (mm)	18

Technical Manuals

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Product Catalogues and Brochures

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Sistema Libraries

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

TÜV SÜD certificate - ILION Photocells

Download

CAD Drawing

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical drawings

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

Technical Data

Features

Safety level	Type 2 - PL c
Max. range (m)	20
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C)	0 ... 55
Response time (ms)	7 (photocell only)
Sensor type	Photocells
Safety output type	PNP, max 100 mA light on
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000804
Safety outputs	1 PNP max 100 mA light on
LED signalling	Status LED on the emitter and receive
Safety functions	With external module
Detection	Access control
Operating Range (m)	Up to 20
Protective enclosures	None
Product class	C
Custom tariff	8541900000
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Degree of protection	IP67
Fastening	2 M18 nuts (included). Set of 2 IL FB adjustable brackets (not included)
Lenght (mm)	85
Diameter (mm)	18
