ILION IL 10

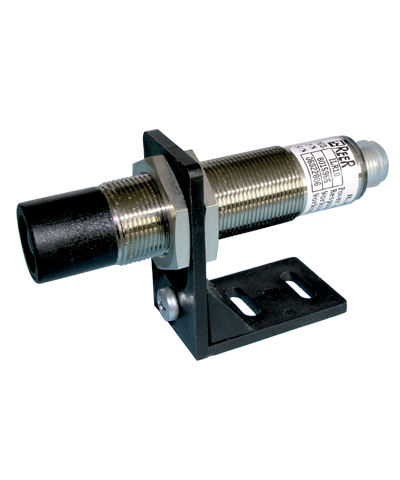

M18 Safety Photocell, 10 m range

Type 2 - PL c

Safety level

Photocells

Sensor type

Request info

Download Pdf

Technical Data
Documents
Certificates
Technical Drawings

Features

Safety level	Type 2 - PL c
Max. range (m)	8
Safety level (SIL / PL)	Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C)	0 ... 55
Response time (ms)	7 (photocell only)
Sensor type	Photocells
Safety output type	PNP, max 100 mA light on
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000804
Safety outputs	1 PNP max 100 mA light on
LED signalling	Status LED on the emitter and receive
Safety functions	With external module
Detection	Access control
Operating Range (m)	Up to 8
Protective enclosures	None
Product class	C
Custom tariff	8541900000
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%

Mechanical data

Degree of protection	IP67
Fastening	2 M18 nuts (included). Set of 2 IL FB adjustable brackets (not included)
Lenght (mm)	85
Diameter (mm)	18
