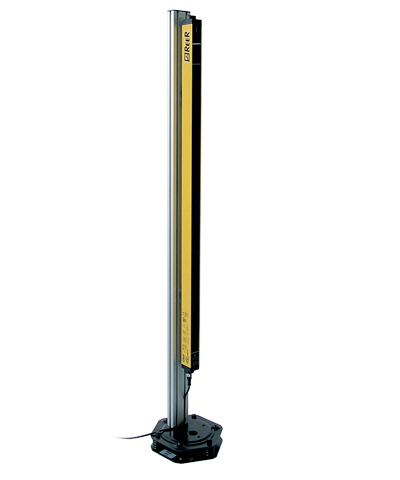

Universal Floor Mounting Column for the installation of any type of light curtains, including the WT/WTH and WTF/WTHF series
The ordering PN does not include the base which must be ordered eparately (FMC-CB and FMC-CBL models)
Generic mounting column for light curtains, 80 x 80 mm, h = 1200 mm, Stainless Steel Accessories
Features
| Packaging dimensions HxLxW (mm) | 145 x 1300 x 200 |
| Product class | B |
| Custom tariff | 7616999099 |
Mechanical data
| Cross section dimensions (mm) | 80 x 80 |
| Fastening | Through base for floor columns CBx |
CAD Drawing
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Technical drawings
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Technical Description
Universal Floor Mounting Column for the installation of any type of light curtains, including the WT/WTH and WTF/WTHF series
The ordering PN does not include the base which must be ordered eparately (FMC-CB and FMC-CBL models)
Technical Data
Features
| Packaging dimensions HxLxW (mm) | 145 x 1300 x 200 |
| Product class | B |
| Custom tariff | 7616999099 |
Mechanical data
| Cross section dimensions (mm) | 80 x 80 |
| Fastening | Through base for floor columns CBx |
