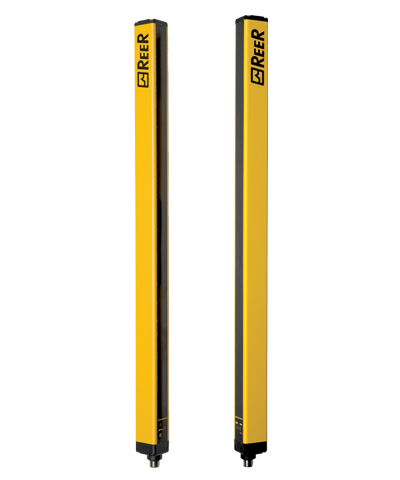

EOS4 1651 XT

Auto-manual restart + EDM, Resistant to high vibrations (Textile)

Type 4 - PL e

Safety level

1660

Protected height (mm)

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Request info

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 28 x 30 mm
No blind area on one side
Hardware configuration: no programming necessary, easy to install and replace

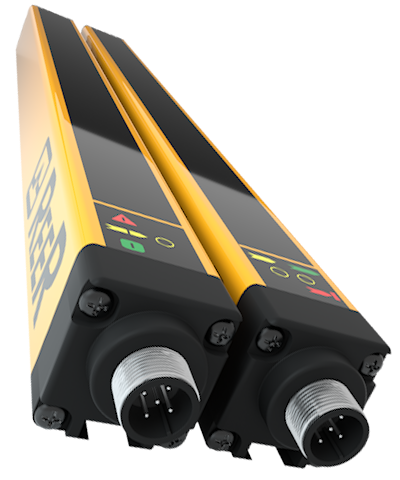

Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

TÜV SÜD certificate - EOS4 Safety Light Curtains

Download

UL Mark for USA and Canada

Download

CAD Drawing

Technical drawings

E-Plan

Technical Description

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

TÜV SÜD certificate - EOS4 Safety Light Curtains

Download

UL Mark for USA and Canada

Download

Technical Drawings

CAD Drawing

Technical drawings

E-Plan

Safety level	Type 4 - PL e
Protected height (mm)	1660
Resolution (mm)	14
Controlled height (mm)	1650
Max. range (m)	6
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	22
Number of beams	165
Max. length of the connection cables (m)	100
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M12 8-pole connector (receiver)
MTTFD (ISO13849) years	248,3
PFHD (IEC 61508)	0,0000000245
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Safety functions	With external module
Special versions	High vibrations
Detection	Finger
Operating Range (m)	Selectable: 0 ... 3 m - low range / 1 ... 6 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	105 x 1790 x 160
Product class	C
Custom tariff	85365019

Overall height (mm)	1713
Cross section dimensions (mm)	28 x 30
Degree of protection	IP65 - IP67
Fastening	Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional)

Safety level	Type 4 - PL e
Protected height (mm)	1660
Resolution (mm)	14
Controlled height (mm)	1650
Max. range (m)	6
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	22
Number of beams	165
Max. length of the connection cables (m)	100
Signalling	LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M12 8-pole connector (receiver)
MTTFD (ISO13849) years	248,3
PFHD (IEC 61508)	0,0000000245
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Safety functions	With external module
Special versions	High vibrations
Detection	Finger
Operating Range (m)	Selectable: 0 ... 3 m - low range / 1 ... 6 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	105 x 1790 x 160
Product class	C
Custom tariff	85365019

Overall height (mm)	1713
Cross section dimensions (mm)	28 x 30
Degree of protection	IP65 - IP67
Fastening	Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional)
