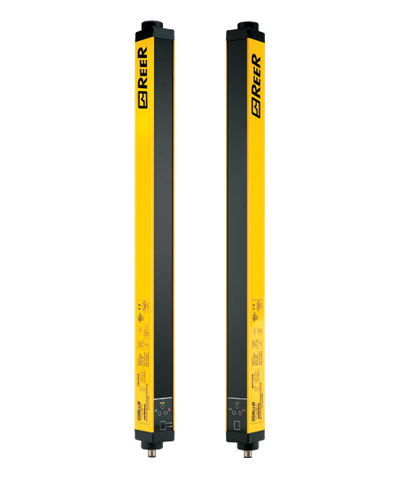

ADMIRAL AX 905 S

Slave, Auto-manual restart + EDM

Type 4 - PL e

Safety level

910

Protected height (mm)

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Yes

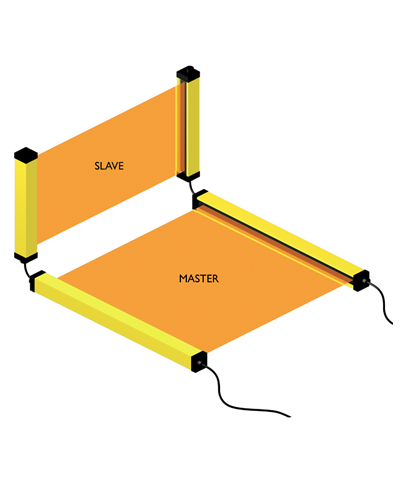

Master Slave Models

Request info

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4

Cross Section: 35 x 45 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

UL Mark for USA and Canada

Download

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	50
Controlled height (mm)	900
Max. range (m)	18
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Master Slave Models	Yes
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	See technical manual
Number of beams	24
Max. length of the connection cables (m)	50
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connectors
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,0000000128
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Body
Operating Range (m)	Selectable: 0 ... 6 m - low range / 1 ... 18 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1080 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1011
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)

Safety level	Type 4 - PL e
Protected height (mm)	910
Resolution (mm)	50
Controlled height (mm)	900
Max. range (m)	18
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Master Slave Models	Yes
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	See technical manual
Number of beams	24
Max. length of the connection cables (m)	50
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connectors
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,0000000128
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Body
Operating Range (m)	Selectable: 0 ... 6 m - low range / 1 ... 18 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 1080 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	1011
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)

ADMIRAL AX 905 S

Technical Description

Technical Data

Documents

Certificates

Technical Drawings

Accessories

Related Products
