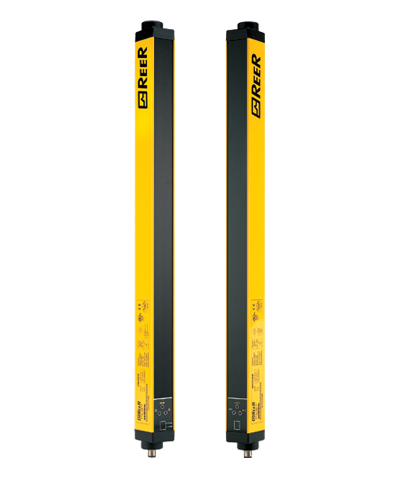

ADMIRAL AX 600 LR

Auto-manual restart + EDM, Long Range

Type 4 - PL e

Safety level

610

Protected height (mm)

100

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Request info

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4

Cross Section: 35 x 45 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

CAD Drawing

Technical drawings

Technical Description

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Sistema Libraries

Certificates

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

Technical Drawings

CAD Drawing

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	610
Resolution (mm)	100
Controlled height (mm)	600
Max. range (m)	50
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	6
Number of beams	9
Max. length of the connection cables (m)	100
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M12 8-pole connector (receiver)
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,0000000109
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Body
Operating Range (m)	Selectable: 10 ... 22 m - low range / 18 ... 60 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 900 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	830
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)

Safety level	Type 4 - PL e
Protected height (mm)	610
Resolution (mm)	100
Controlled height (mm)	600
Max. range (m)	50
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	6
Number of beams	9
Max. length of the connection cables (m)	100
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole connector (emitter), M12 8-pole connector (receiver)
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,0000000109
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Detection	Body
Operating Range (m)	Selectable: 10 ... 22 m - low range / 18 ... 60 m - high range
Protective enclosures	None
Packaging dimensions HxLxW (mm)	145 x 900 x 200
Product class	B
Custom tariff	85365019

Overall height (mm)	830
Cross section dimensions (mm)	35 x 45
Degree of protection	IP65
Fastening	Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)
