ADMIRAL AX 2B LR WT

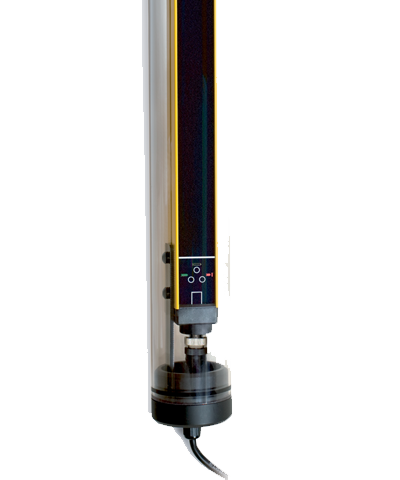

Watertight enclosure IP67 for Admiral Long Range safety light curtains

Type 4 - PL e

Safety level

500

Protected height (mm)

Multi-beams

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Request info

Type 4, SILCL 3, PL e, Cat. 4
Watertight enclosures allow Safety Light Curtains to be used in harsh working environments and outdoor
Integrated anti-condensation system

Hardware configuration: no programming necessary, easy to install and replace

What's in the Box: Emitter, Receiver, Standard Fastening Brackets, Pre-Wired Connection Cable

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

UL Mark for USA and Canada

Download

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

CAD Drawing

Technical drawings

Technical Description

Type 4, SILCL 3, PL e, Cat. 4
Watertight enclosures allow Safety Light Curtains to be used in harsh working environments and outdoor
Integrated anti-condensation system

Hardware configuration: no programming necessary, easy to install and replace

What's in the Box: Emitter, Receiver, Standard Fastening Brackets, Pre-Wired Connection Cable

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

UL Mark for USA and Canada

Download

TÜV SÜD certificate - ADMIRAL Safety Light Curtains

Download

Technical Drawings

CAD Drawing

Technical drawings

Brackets

Columns

Relè

Safety level	Type 4 - PL e
Protected height (mm)	500
Resolution (mm)	Multi-beams
Max. range (m)	50
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	6
Number of beams	2
Max. length of the connection cables (m)	100
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000897
Light curtain technical data	Refer to AX LR models table
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Special versions	Watertight enclosure
Detection	Access control
Operating Range (m)	18 or 50 selectable
Protective enclosures	Harsh working environments
Packaging dimensions HxLxW (mm)	145 x 960 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	841
Degree of protection	IP67
Fastening	Set of 4 WFB ring brackets (included)
Max. water pressure (bar)	40

Safety level	Type 4 - PL e
Protected height (mm)	500
Resolution (mm)	Multi-beams
Max. range (m)	50
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Safety level (SIL / PL)	Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	0 ... 55
Response time (ms)	6
Number of beams	2
Max. length of the connection cables (m)	100
Signalling	7 segment display and LEDs for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
MTTFD (ISO13849) years	100
PFHD (IEC 61508)	0,00000000897
Light curtain technical data	Refer to AX LR models table
Safety outputs	2 OSSD PNP (500 mA at 24 VDC)
Safety functions	Integrated
Special versions	Watertight enclosure
Detection	Access control
Operating Range (m)	18 or 50 selectable
Protective enclosures	Harsh working environments
Packaging dimensions HxLxW (mm)	145 x 960 x 200
Product class	C
Custom tariff	85365019

Overall height (mm)	841
Degree of protection	IP67
Fastening	Set of 4 WFB ring brackets (included)
Max. water pressure (bar)	40
