SFRD4 2254 P - Safety ight Curtains with integrated functions programmable via APP

Type 4 - PL e

Safety level

2260

Protected height (mm)

Resolution (mm)

Max. range (m)

Built-in - User selectable automatic or manual

Restart

Emitter / Receiver

Functioning system

Fixed, floating or mixed

Blanking function

Yes

Programmability

Request info

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

Cross Section: 28 x 33 mm
No blind area on both side

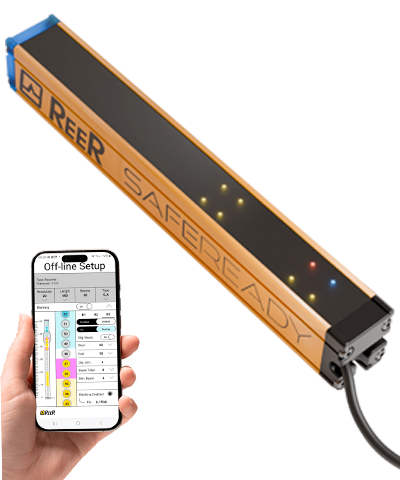

Software configuration via Safeready APP connected via Bluetooth; allows the barrier to be adapted to different safety applications
Connection and configuration through M12 pig-tail connectors
Start / Restart manual or automatic with EDM monitoring
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Features

Electrical data

Mechanical data

Technical Manuals

Product Catalogues and Brochures

Technical drawings

Technical Description

Compact Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4

What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Technical Data

Features

Electrical data

Mechanical data

Documents

Technical Manuals

Product Catalogues and Brochures

Certificates

Technical Drawings

Technical drawings

Safety level	Type 4 - PL e
Protected height (mm)	2260
Resolution (mm)	40
Controlled height (mm)	2250
Max. range (m)	18
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Blanking function	Fixed, floating or mixed
Safety level (SIL / PL)	Type 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	See technical manual
Number of beams	90
Max. length of the connection cables (m)	100
Signalling	LEDs and top LED cap for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male pigtail connector (emitter), M12 8-pole male pigtail connector (receiver)
MTTFD (ISO13849) years	20
Blanking with object presence obligation	Configurable via Safeready APP
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Storage temperature (°C)	- 30 … 70
Relative humidity	50% @ 70 °C / 90% @ 20 °C
Safety functions	Integrated
Detection	Hand
Operating Range (m)	Selectable: 0 ... 8 m - low range / 5 ... 18 m - high range
Protective enclosures	None
Programmability	Yes
Product class	B

Beam spacing (mm)	30
Overall height (mm)	2268
Cross section dimensions (mm)	28 x 33
Degree of protection	IP65 - IP67
Fastening	Back slot with set of brackets (included)

Safety level	Type 4 - PL e
Protected height (mm)	2260
Resolution (mm)	40
Controlled height (mm)	2250
Max. range (m)	18
Restart	Built-in - User selectable automatic or manual
Functioning system	Emitter / Receiver
Blanking function	Fixed, floating or mixed
Safety level (SIL / PL)	Type 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	See technical manual
Number of beams	90
Max. length of the connection cables (m)	100
Signalling	LEDs and top LED cap for light curtain's status and diagnostics
Safety output type	2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity
Connections	M12 5-pole male pigtail connector (emitter), M12 8-pole male pigtail connector (receiver)
MTTFD (ISO13849) years	20
Blanking with object presence obligation	Configurable via Safeready APP
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Storage temperature (°C)	- 30 … 70
Relative humidity	50% @ 70 °C / 90% @ 20 °C
Safety functions	Integrated
Detection	Hand
Operating Range (m)	Selectable: 0 ... 8 m - low range / 5 ... 18 m - high range
Protective enclosures	None
Programmability	Yes
Product class	B

Beam spacing (mm)	30
Overall height (mm)	2268
Cross section dimensions (mm)	28 x 33
Degree of protection	IP65 - IP67
Fastening	Back slot with set of brackets (included)
